СКУ: LC1D150A6EHE

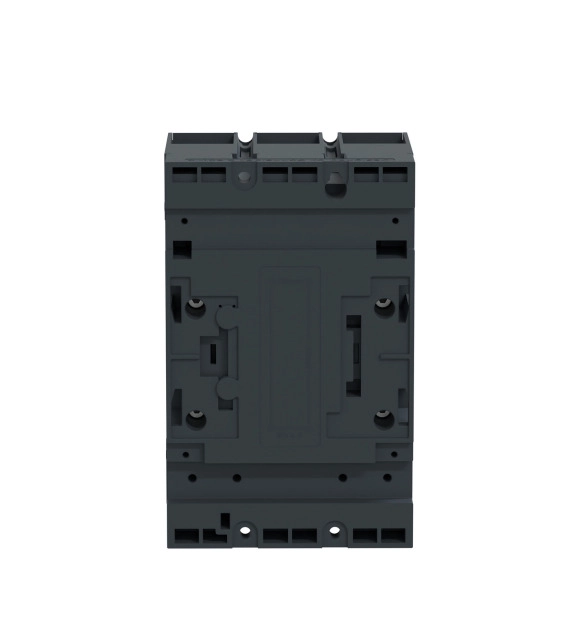

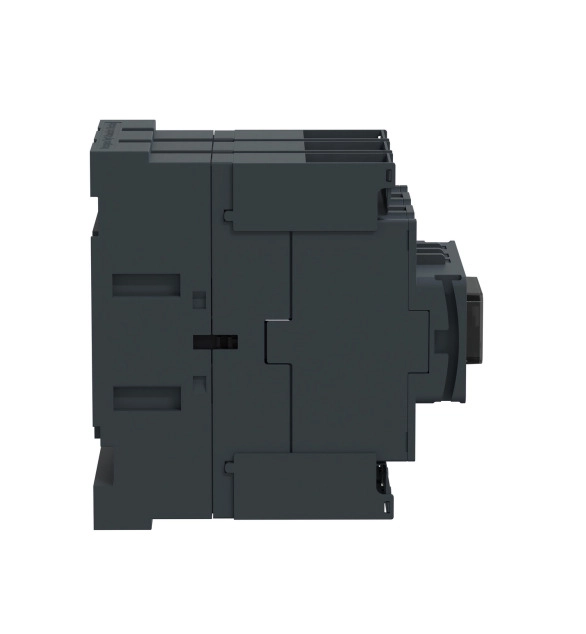

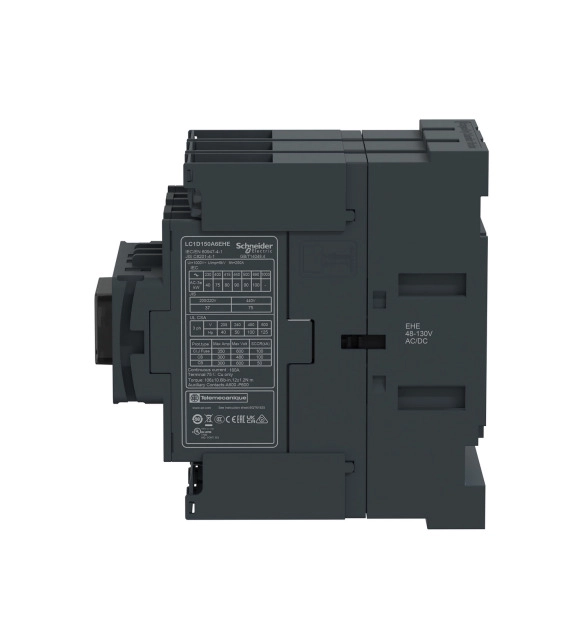

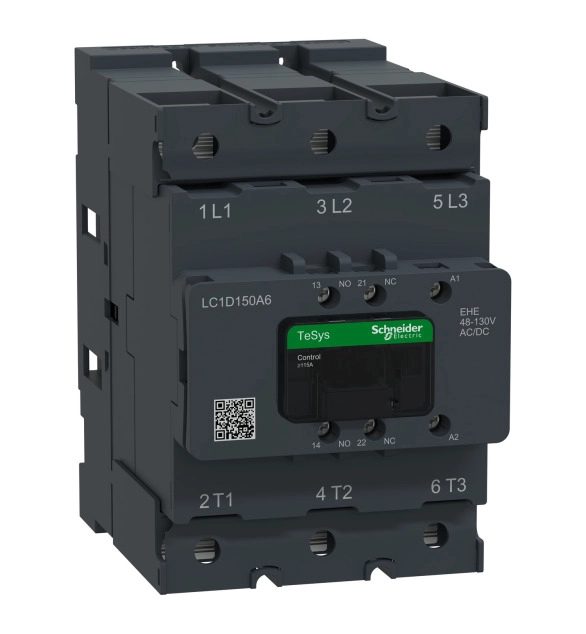

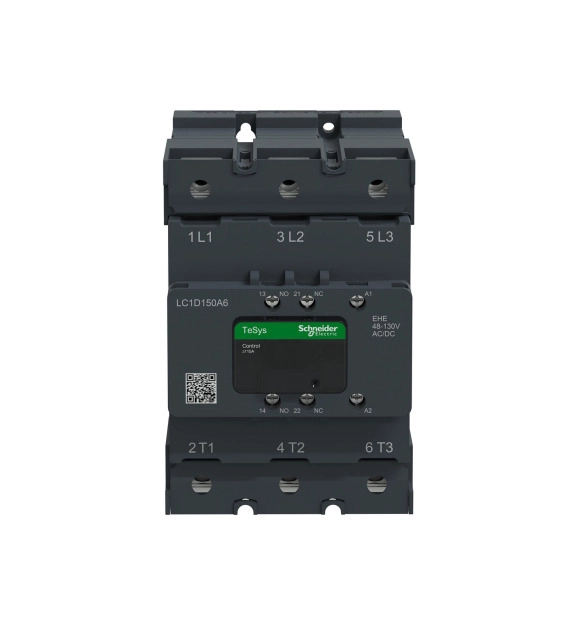

Контактор, Tesys Deca Advanced, 3P(3NO), AC-3/AC-3e, <=440V, 150A, 48-130V AC/DC бобина, клеми за кабелни обувки или шини
-
Brand
Schneider Electric
-
Rated control supply voltage Us at AC 50HZ
24
-
Rated control supply voltage Us at AC 60HZ
24
-
Voltage type for actuating
EV000509
-
Rated control supply voltage Us at DC
24
-
Type of electrical connection of main circuit
EV008864
-
Number of auxiliary contacts as normally closed contact
1
-
Number of auxiliary contacts as normally open contact
1
-
Modular version
FALSE
-
Number of normally closed contacts as main contact
-
Rated operation current Ie at AC-4, 400 V
150
-
Rated operation power at AC-4, 400 V
75
-
Number of normally open contacts as main contact
4
-
Rated operation power at AC-3, 400 V
75
-
Rated operation power NEMA
100
-
Rated operation current Ie at AC-1, 400 V
275
TeSys Giga high power contactor, 4 poles (4 NO) suitable for category AC-1 applications up to 250A /440V. Equipped with 100-250 V AC/DC wide band low consumption electronic coil and embedded highly reliable 1NO+1NC auxiliary contact block (17V 1mA). Designed for demanding applications with maximum operating rates up to 300 cycles per hour and environments up to 60°C. It’s built with high reliability delivering mechanical durability up to 8 million cycles. Contact Wear Diagnosis (CWD) is a standard function, which continuously monitors and provide feedback through healthy and alarm conditions by an LED indicator. It is possible to replace switching module (main contacts), control module enhancing contactor life with simple maintenance activities. Front accessible main power connections are with bolted connection and control connections by push-in terminals for easy and quick assembly. It provides IP2x protection from front face with optional terminal shrouds conforming to IEC 60529 and VDE 0106. It can cover -25°C to 60°C operation ambient air temperature and directly mounted on plate, with no derating up to 3000m altitude. Contactor can be installed in three quadrants of vertical plane, and OLR could be directly mounted below contactor. The dimensions are 193 mm x 143 mm x 193 mm (H x W x D), compact size enables panel space savings. Multi standards certified (CB, CCC, cULcs, CE, UKCA marking). Unique QR code provides quick access to complete product data.
