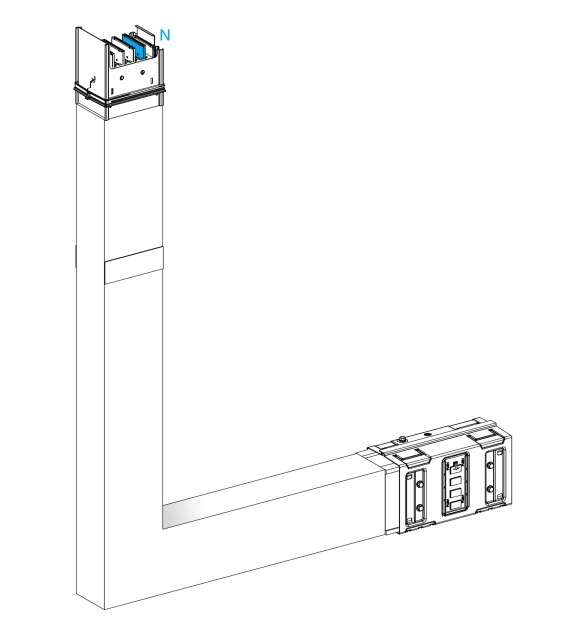

Elbow, Canalis KSA1000, алуминий, 1000A, sides A/B made to measure, 1 fire barrier, to go upward, 3L+N+PE,бял RAL9001 | Spark & Co
  • 3D
|

СКУ: KSA1000DLE43F

Elbow, Canalis KSA1000, алуминий, 1000A, sides A/B made to measure, 1 fire barrier, to go upward, 3L+N+PE,бял RAL9001

  • Brand
    Schneider Electric
  • Height
    60
  • RAL-number
    9003
  • Colour
    EV000202
  • Width
    51
  • Degree of protection (IP)
    EV006420
  • Flexible
    FALSE
  • Number of conductors (without earthing)
    4
  • Rated voltage at AC 50 Hz
    230
  • Model
    EV003602
  • Number of poles
    6
  • Rated current at AC 50 Hz
    40
  • Length
    3000
  • Number of tap-off units
    5

This is a straight length for Canalis KBB busbar trunking. Canalis KBB is designed for lighting and power socket distribution. The rated operational current is 40A at 35°C. The rated operational voltage is from 230VAC to 400VAC 50/60Hz. There is no tap-off outlet. It embeds 2 independent electrical circuits with 3L+N+PE polarity. It provides IP55 protection conforming to IEC 60529 standard, which guarantees trunking protection against splashes and dust. It provides IK06 protection conforming to IEC 62262 standard against external mechanical impacts. The length is 3m, and the section is 46mm x 46mm. Sold in lots of 6 units. It is made off RAL 9003 white lacquered sheet steel. Canalis KBB is compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2).
