СКУ: CCT15338

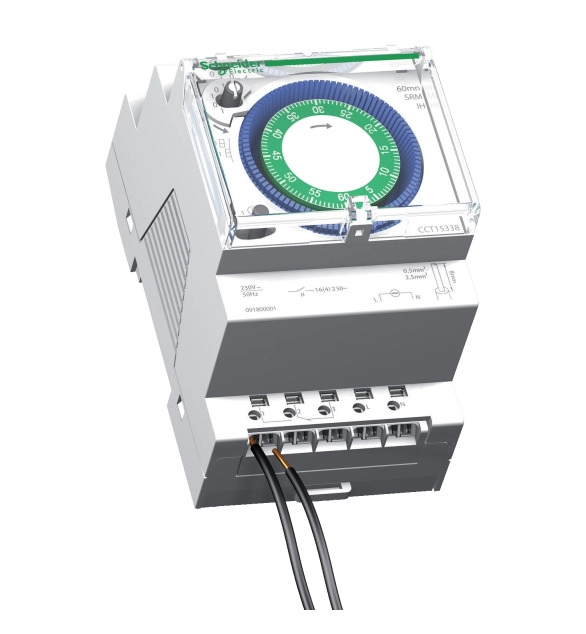

Механично времереле - Acti 9 - 60мин - без памет

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006405
  • Mounting method
    EV000242
  • Width in number of modular spacings
    3
  • Height
    90
  • Width
    54
  • Voltage type of supply voltage
    EV000460
  • Supply voltage
    230
  • Suitable for manual operation
    TRUE
  • Automatic switching summer-/winter time
    FALSE
  • Switching preselection
    TRUE
  • Quartz controlled
    FALSE
  • Mains synchronous
    FALSE
  • Number of channels
    1
  • Frequency supply voltage
    50
  • Depth
    66
  • Weekly program
    FALSE
  • Annual program
    FALSE
  • 24 h program
    FALSE
  • Potential free switch contact
    FALSE
  • 60 min program
    TRUE
  • Max. switching power LED
    180
  • Nominal switching current at 250 V AC
    10
  • Shortest switching time channel 1
    0.63
  • Autonomy in hours
  • Program shift divide 1
    0.63

Acti 9 Mechanical time switch IH 60mn 1c SRM. Automatically switch On and Off loads according to the program entered by the user they operate on an hourly cycle. The same program is repeated hour after hour (IH 60mn). The program can be overriden On. Voltage rating (Ue): 230 V AC, +10 %,-15 %, 50/60 Hz. Consumption 1 VA. Operating temperature -20°C to +55°C. Width (9 mm modules): 6. Degree of protection: IP20B. Output contact rating 250 V: 16 A cos Phi 1. 4 A cos Phi 0.6. Number of switching operations: 48 On - 48 Off. Switching accuracy: ±1 s per day at 20°C. Programming by Captive segments: 96.
