СКУ: ABR7S23

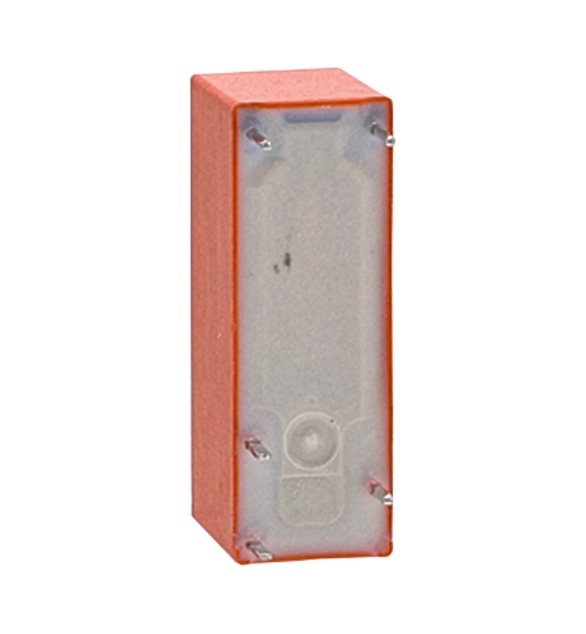

Електромеханично реле с основа - 10 mm - 24 V DC - 1 CO
-
Brand
Schneider Electric
-
Width in number of modular spacings
1
-
Number of contacts as change-over contact
1
-
Mounting method
EV000154
-
Voltage type of supply voltage
EV000461
-
Frequency control voltage 1
50
-
Function
EV000154
-
Rated current
5
-
Supply voltage
24
-
Control voltage 1
24
-
Type of control voltage 1
EV000461
-
Built-in depth
10
-
Number of contacts as normally open contact
-
Number of contacts as normally closed contact
-
Max. incandescent lamp load
0.36
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This plug-in electromechanical relay is compatible with Modicon ABE7 connection sub-bases. It has 1 change over contact. It is a solid state relay with a control circuit voltage of 24V DC, a conventional free air thermal current of 5A and a maximum power dissipation per pole is 0.36W. It offers electrical durability of 500000 cycles and mechanical durability of 20 million cycles. The width pitch is 10mm. It weighs 0.01kg. It is suitable for all types of industrial applications. This product is suitable for use with Modicon ABE7P16T215, ABE7P16T230, ABE7P16T212, ABE7R16T231, ABE7P16T214, ABE7P16T230E, ABE7R16T230 and ABE7P16T210 sub-base. Modicon ABE7 means greater simplicity to rationalise wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
