СКУ: NSYCRN68300

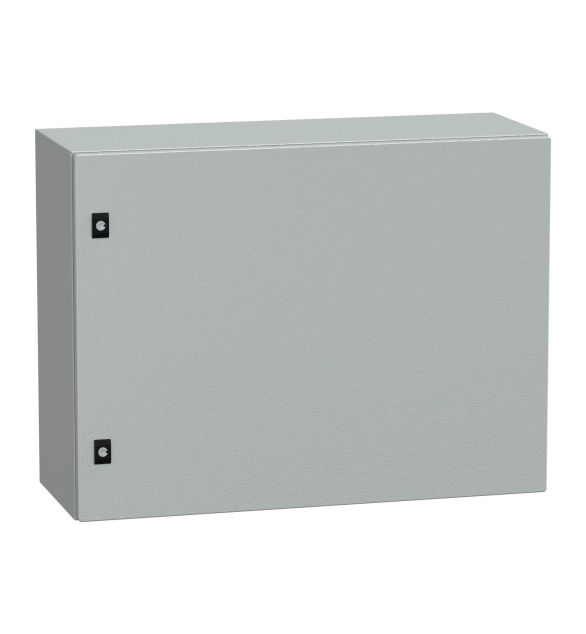

Мет.табло без МП CRN 68/300 NSYCRN68300
-
Brand
Schneider Electric
-
With mounting plate
FALSE
-
EMC-version
FALSE
-
RAL-number
7035
-
Colour
EV000270
-
Surface finishing
EV008895
-
Material
EV000179
-
Degree of protection (NEMA)
EV000154
-
With glazed door
FALSE
-
Number of doors
1
-
With backside door
FALSE
-
Material quality
EV000154
-
Width
500
-
Degree of protection (IP)
EV006422
-
Height
500
-
Connectable
FALSE
-
Suitable for outdoor set-up
FALSE
-
Detached
FALSE
-
Pitched roof
FALSE
-
Intermediate mounting
FALSE
-
Corner model
FALSE
-
Suitable for wall built-in
FALSE
-
Mounting plate depth-adjustable
FALSE
-
With ventilation door
FALSE
-
Floor standing wall model
FALSE
-
Suitable for wall mounting
TRUE
-
Impact strength
EV008784
-
Depth
250
-
Suitable for metrical mounting
FALSE
-
Number of locks
1
-
Pole fastening
TRUE
-
Max. permissible load of the mounting plate according to IEC 62208
250
-
Max. permissible load of the door(s) according to IEC 62208
50
This PLA version of the PanelSeT is a multi-purpose, floor-standing enclosure that is suitable for various applications It has nominal dimensions of 750mm in height, 1000mm in width, and 320mm in depth, and is made of polyester reinforced with fiberglass, offering durability and resistance to harsh environments, both indoor and outdoor This enclosure is available in grey (RAL 7035) color and consists of two side parts, two plain front doors, and two rear panels The doors can be opened from both the right and left sides, up to 120°, and feature a two-point lock with a 5mm double-bar insert The doors and rear panels are also removable for maintenance purposes The enclosure offers robust protection against various hazards, including fire, impact, dust, and water It can withstand fire up to 960°C in accordance with the IEC 62208 standard The enclosure also has an IK10 rating (IEC 62262), indicating high resistance to impacts It is rated IP65 (IEC 60529), offering complete protection against dust and water Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions It is UL/cUL listed, DNV Marine certified, and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance
