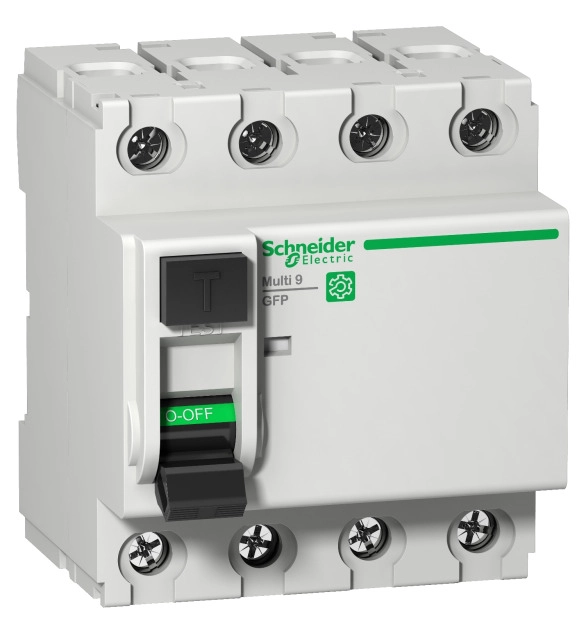

SCHNEIDER ELECTRIC Residual current circuit breaker (RCCB), Multi9 GFP, 4P, 25A, A-SI type, 30mA

This Multi9 GFP product is a residual current circuit breaker (RCCB). It is a 4P circuit breaker with a 25A rated current, 26mA and 30mA earth leakage sensitivity, and an A-SI type protection class. This product protects against electric shock from direct contact. A red mechanical status indicator on the front face indicates the tripping of a fault. The A-SI type offers enhanced immunity to electrical disturbances. This product is dedicated to original equipment manufacturers (OEMs) and control panel builders in industrial and tertiary buildings. It is complies with IEC/EN 61008-1 standard. The (Idm/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) rated conditional short circuit current is 10kA. It has a mechanical endurance going up to 20000 cycles. The rated operational voltage is 240VAC with an operating frequency of 50Hz to 60Hz. The rated insulation voltage is 440VAC, and the rated impulse withstand voltage is 6kV. It can be clipped on a DIN rail, and its width is 8 pitches of 9mm. The dimensions are (W) 72mm x (H) 81mm x (D) 60mm. The product colour is light grey (RAL 7035). The weight is 0.45kg. It offers reliable protection with an IP20 rating on its terminals, which is enhanced to IP40 when placed in a modular enclosure. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 70°C.
