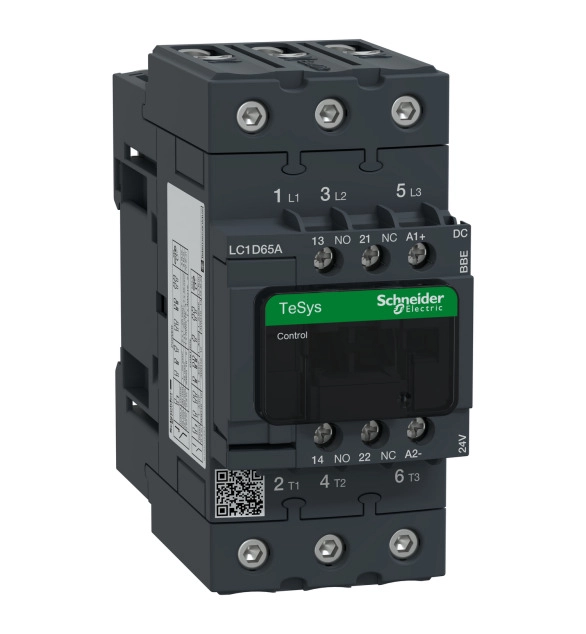

СКУ: LC1D65ABBE
TeSys D контактор - 3P - <= 440 V - 65 A AC-3 - 24 V DC бобина
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Voltage type for actuating
EV000460
-
Number of auxiliary contacts as normally closed contact
1
-
Number of auxiliary contacts as normally open contact
1
-
Rated operation power at AC-3, 400 V
15
-
Rated control supply voltage Us at AC 50HZ
230
-
Rated control supply voltage Us at AC 60HZ
230
-
Modular version
FALSE
-
Rated operation current Ie at AC-3, 400 V
32
-
Number of normally closed contacts as main contact
-
Number of normally open contacts as main contact
3
-
Rated operation current Ie at AC-4, 400 V
18
-
Rated operation power at AC-4, 400 V
7.5
-
Rated operation current Ie at AC-1, 400 V
50
Easy TeSys Control contactor 3 poles for motor applications up to 6A 2.2kW/440V. It provides a 220V 50/60Hz AC coil, 1NC built-in auxiliary contacts, power and control connections by screw clamp terminals. 45mm width for standard. It provides standard reliability and durability with 1.4 Mcycles electrical durability AC-3 and 10 Mcycles mechanical durability. Operating rates up to 1800 cycles per hour. It can cover -5°C to 55°C working temperature and mounted by DIN-rail. No derating up to 3000m altitude. Available worldwide, it is multi-standards certified (CB scheme,CE,CCC,EAC) and Environmental compliant (RoHS/REACH).
