СКУ: ZB2BW061C

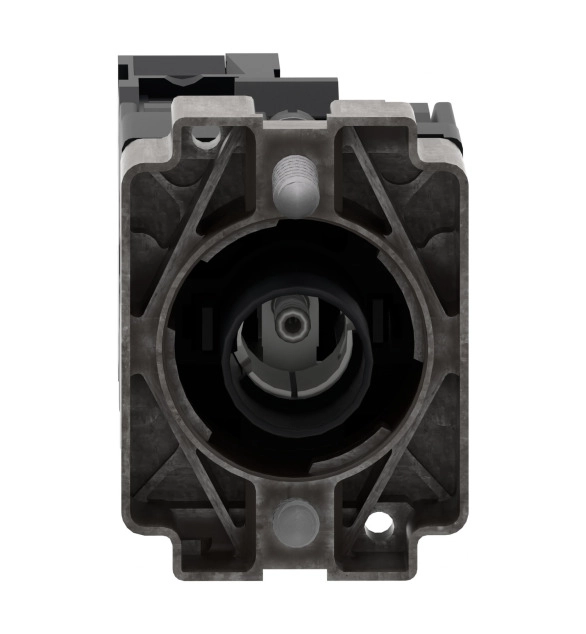

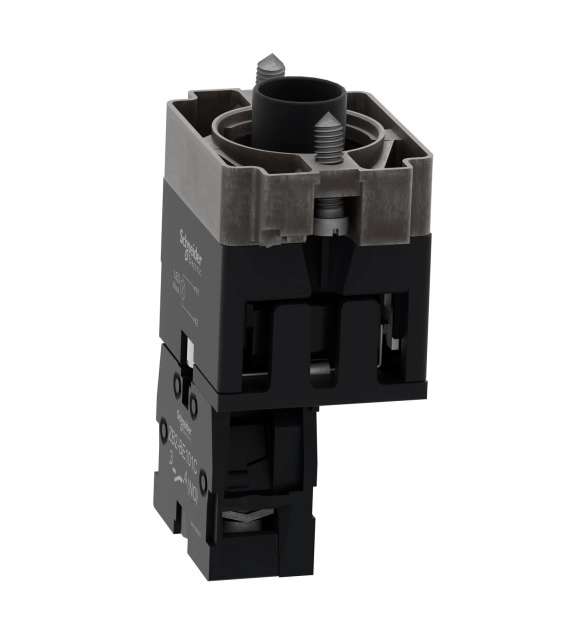

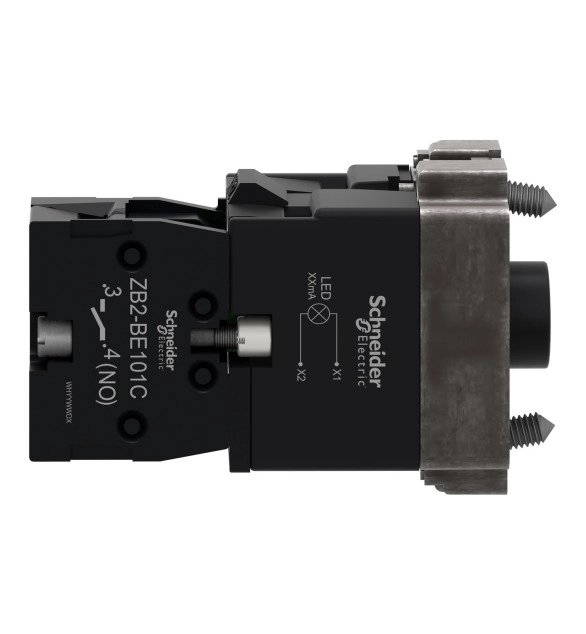

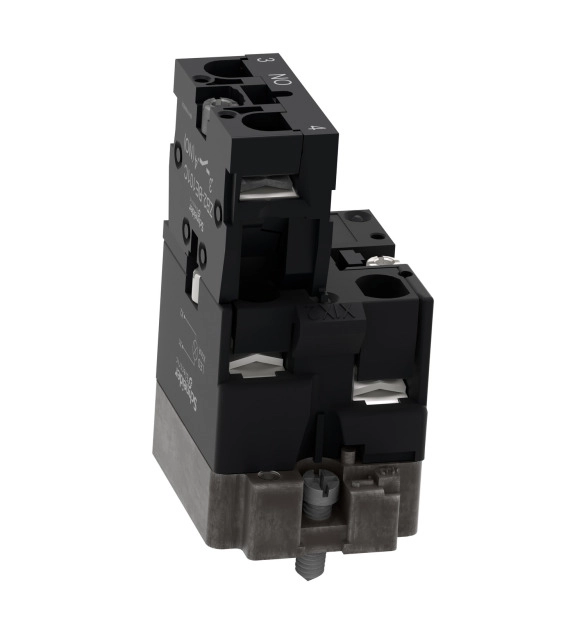

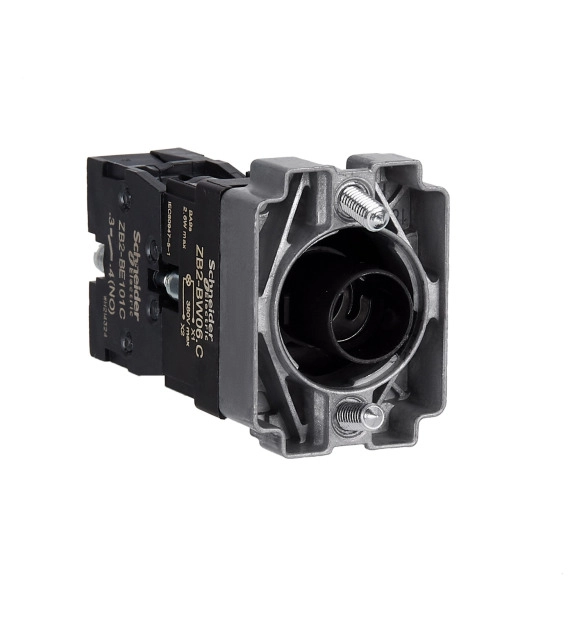

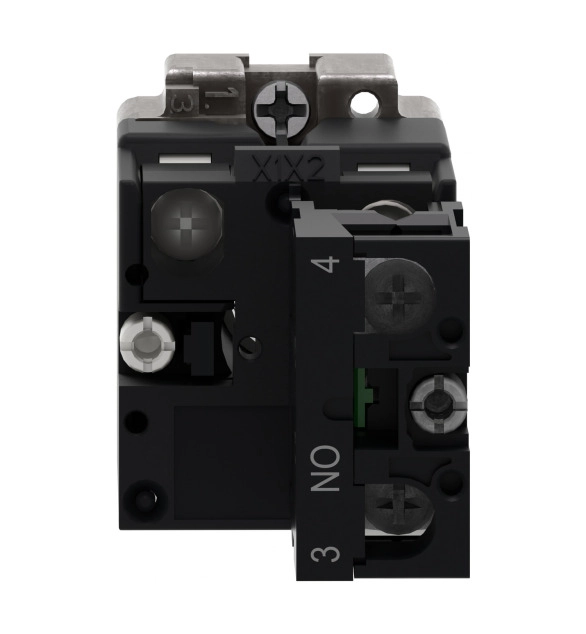

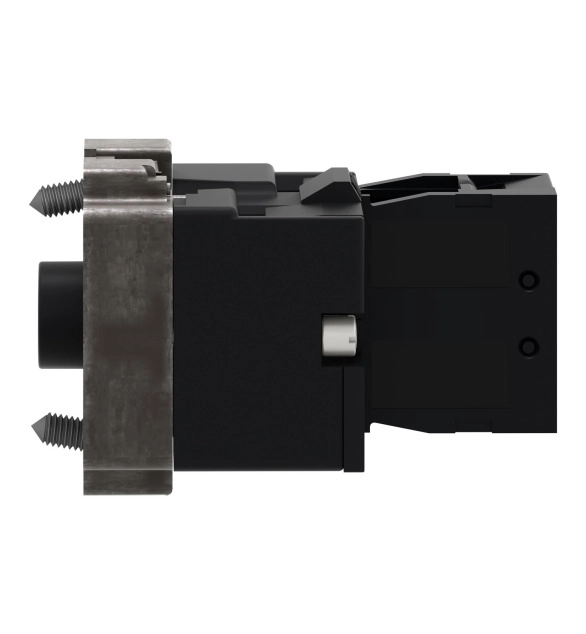

Light block with body and fixing collar, Easy Harmony XB2, metal, without BA9S bulb, 0...380V AC, 1NO
-
Brand
Schneider Electric
-
With light source
FALSE
-
Connection type auxiliary circuit
EV000415
-
With integrated voltage decreasing resistor
FALSE
-
With integrated diode
FALSE
-
Lamp holder
EV000372
-
Transformer integrated
FALSE
-
Voltage type for actuating
EV000460
-
Type of fastening
EV000154
-
Rated voltage Ue at AC 50 Hz
380
-
Rated voltage Ue at AC 60 Hz
380
This Easy Harmony XB2 modular light block is assembled with a metal body/ fixing collar and 1 NO contact block. It is supplied with 380V AC and does not come with a BA9S bulb. Simply adding an illuminated push button head and BA9s bulb to this assembly will provide you with a complete ready-to-use push button. It is easily installed with compatible illuminted push button heads. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear markings, minimizing errors during initial wiring and later maintenance operations. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.
