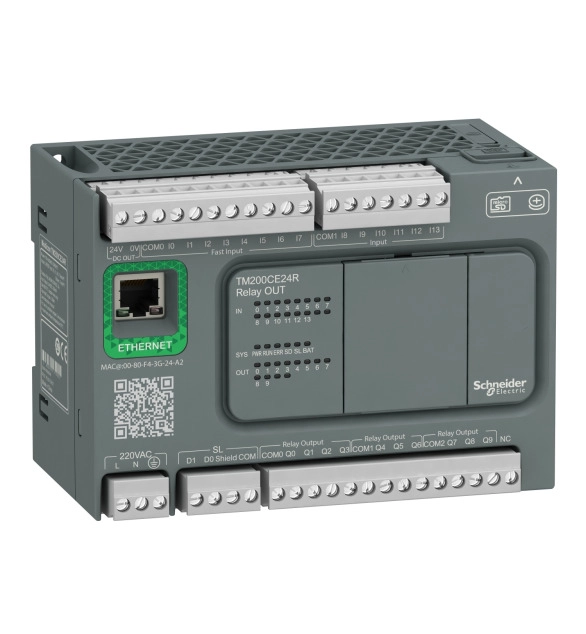

Контролер M200 24 IO реле+Ethernet

This product is part of the Easy modicon M200 range, an offer of logic controllers for up to 196 I/O, 2 axis motion control. It is a logic controller with 6 regular inputs, 4 fast inputs, 4 high speed inputs, 10 relay outputs. Its supply voltage is 100VAC to 240VAC, it embeds 1 serial link port (RS 485), 1 Ethernet port (type RJ45), and a USB port dedicated to programming. This controller is suitable at an affordable price, without compromising on simplicity, robustness, availability and services. It embeds a PID process control, PTO, PWM and PLS position control. Its voltage limit (ripple included) is 85VAC to 264VAC (50/60Hz) and maximum consumption stands between 61VAC and 74VAC. It measures 130mm wide x 70mm deep x 90mm high and it weighs 0.512kg. It is designed for applications such as textile, machine tools, packaging, HVAC, material handling, pumping, hoisting, and electronic assembly. This product is certified by CE, CSA, IACS E10, RCM and CULus and meets EN/IEC 61010-2-201 and EN/IEC 61131-2 standards. This controller is compatible with optional cartridges which offer digital I/O and analog I/O expansions, and Serial Link communication port expansions. It is sold in a 1-piece package. It supports DIN rail mount. Easy modicon M200 controllers are entry-level products perfectly suited to meet specific needs of emerging markets at an affordable price without compromise. Easy modicon M200 logic controllers, the best performance/price ratio solutions for your small automation systems requiring flexibility and simple motion.
