СКУ: NSYTBP29248T
Инд.кутия 291X241X87 пр.капак PC
-
Brand
Schneider Electric
-
With mounting plate
FALSE
-
Type of cover
EV001012
-
Extension possible
FALSE
-
Material housing
EV000139
-
Mounting method
EV000384
-
With lock
FALSE
-
RAL-number
7035
-
Transparent cover/door
TRUE
-
Cover model
EV000116
-
Colour
EV000270
-
Surface protection
EV006034
-
Depth
88
-
Degree of protection (NEMA)
EV014040
-
Degree of protection (IP)
EV006422
-
Circuit integrity
EV000494
-
Internal depth
80
-
Type of door
EV000494
-
Protection class
EV000583
-
Impact strength
EV006814
-
Suitable for outdoor use
TRUE
-
Height
291
-
Width
241

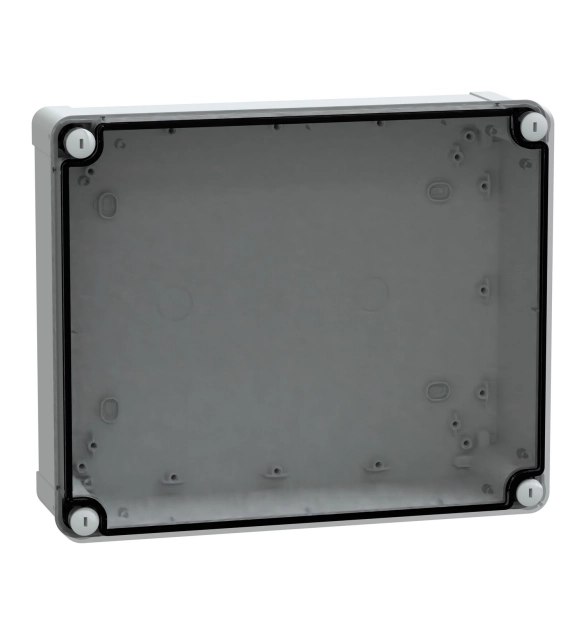

This TBP is a wall-mounted box made of polycarbonate that is suitable for multi-purpose applications The box has a height, width, and depth of 291 mm, 241 mm, and 88 mm, respectively The internal dimensions of the box are 275 mm x 225 mm x 80 mm The box is made of PC (polycarbonate), which offers resistance to impact, corrosion and low and high temperatures It can be installed in outdoor The box comes in a grey (RAL 7035) and transparent cover The cover is fixed with captive flat screws located outside sealed area and easily openable with a flat screwdriver The box can be used for junction, shunting, protection of electronical cards, push button support, industrial automation and other applications It is also resistant to fire up to 960°C in accordance with IEC 62208 standard The box offers high protection against dust and water with an IP66 rating (NEMA 4,4X) and is impact resistant with an IK08 rating (IEC 62262) It can be used in ambient air temperature ranging from -25 to 80°C without affecting its performance The product is UL certified and is class II insulated
