СКУ: TM100C32RN

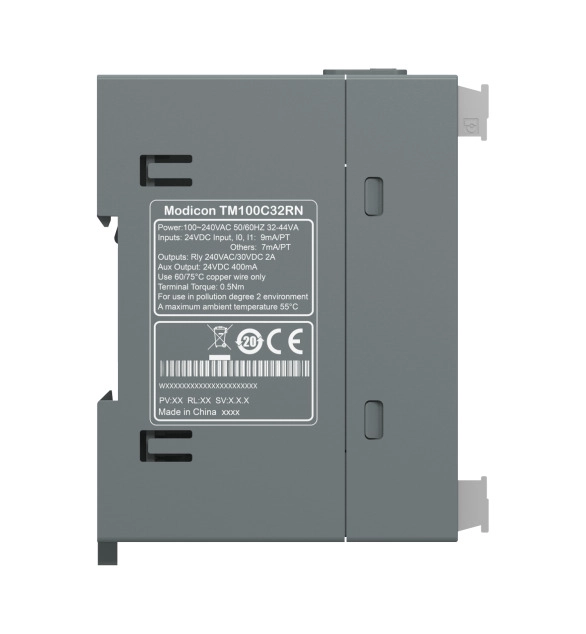

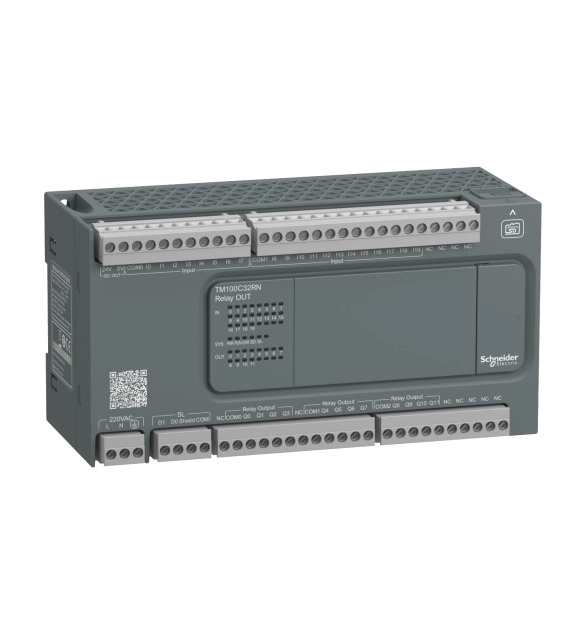

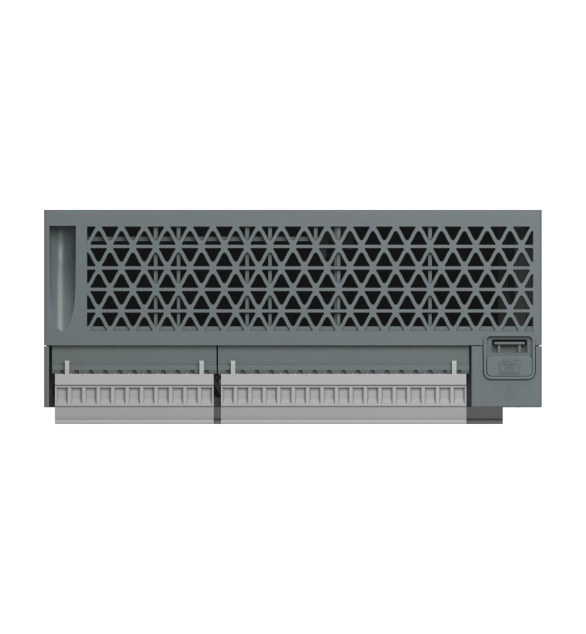

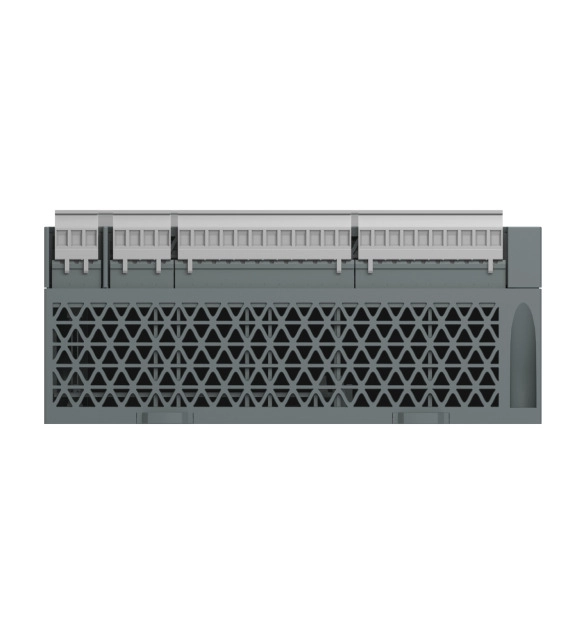

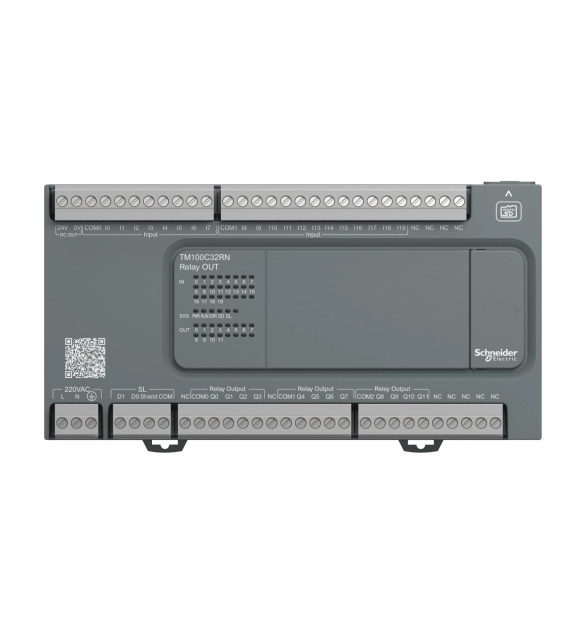

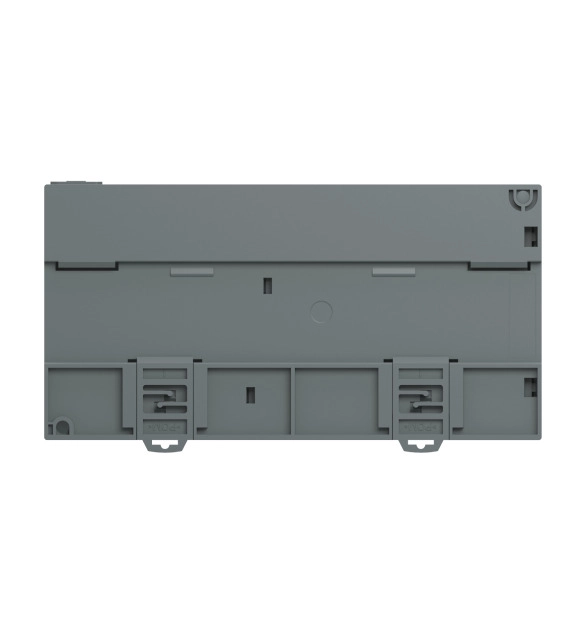

Контролер M100 20I/12O 220VAC
-
Brand
Schneider Electric
-
Accessory
TRUE
-
Spare part
FALSE
-
Type of electrical accessory/spare part
EV000154
-
Type of mechanical accessory/spare part
EV000154
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. It is a logic controller with 24 discrete, 4 fast inputs, 16 transistor, 4 fast outputs with NPN transistor output with 10bit resolution. The I/O are connected on removable screw terminal blocks. It is a logic controller with a rated supply/output voltage of 24V DC, an output current of 0.5A with sink or source input logic and negative output logic. Integrated connections are USB 2.0 (Mini-B), Serial 1 (RJ45, RS485), Serial 2 (RJ45, RS232/RS485). it measures 160mm (Width) x 70mm (Depth) x 90mm (Height), and it weighs 0.456kg. It is certified by CE, cULus, RCM, EAC, LR, ABS, DNV-GL, and UKCA, complies with IEC/EN 61131-2, UL 508, ANSI/ISA, CSA C22.2 No. 213 & 142, and IACS E10. It is compatible with Modicon TM3 I/O System, analog and communication cartridges. It is sold in a 1-piece package. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with Modicon M221 through intuitive machine programming with EcoStruxure Machine Expert Basic.
