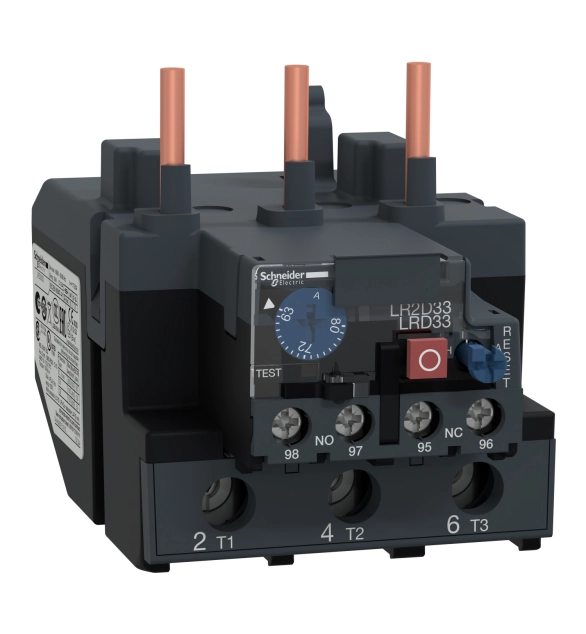

СКУ: LRD3363
Термична защита мод. D 63-80
-
Brand
Schneider Electric
-
Colour
EV000206
-
Suitable for switch disconnector
FALSE
-
Suitable for power circuit breaker
TRUE
-
Suitable for emergency stop
FALSE
-
With restart blockage
FALSE
-
Padlock locking
TRUE
-
With key lock
FALSE
-
With extension shaft
TRUE
TeSys LRD thermal overload relay, 120A/1000V, thermal setting range 95-120A, tripping class 10A, for protection of 3-phase motors 55kW@400V. Differential device with phase failure (loss). It provides a thermal adjustement dial, a manual-automatic reset selector acting also as reset button, a trip test button for simulation of a tripping, a stop button, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D115-D150. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LA7D3064 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine).
