СКУ: LX1G3SEHEA

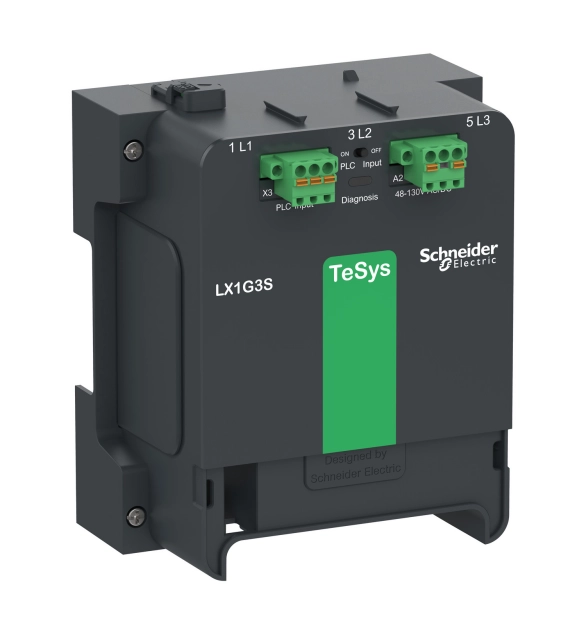

контролен модул, TeSys Giga, 48-130V AC/DC, за LC1G400-500/3P разширена версия
-
Brand
Schneider Electric
-
Voltage type for actuating
EV000509
-
Rated control supply voltage Us at AC 50HZ
48
-
Rated control supply voltage Us at AC 60HZ
48
-
Rated control supply voltage Us at DC
48
It is a 48-130V AC/DC control module for 3 poles TeSys Giga 265-300 contactor (advanced version). Coil designed for less energy consumption and wider voltage band-width, connection by spring terminal. It allows contactor operation with high AC-3 operating rates until 600 cycles/hour and environments until 60°C. Control module has connectors for connecting the coil control A1, A2 circuit, pole status and diagnostic signaling circuits. Local Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It is accessible from the front and maintained with very low down times. Unique QR code provides quick access to complete product data.
