СКУ: C6PFM

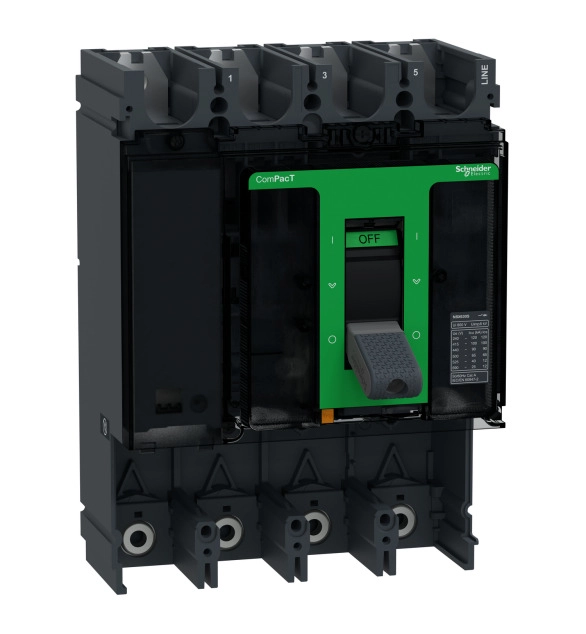

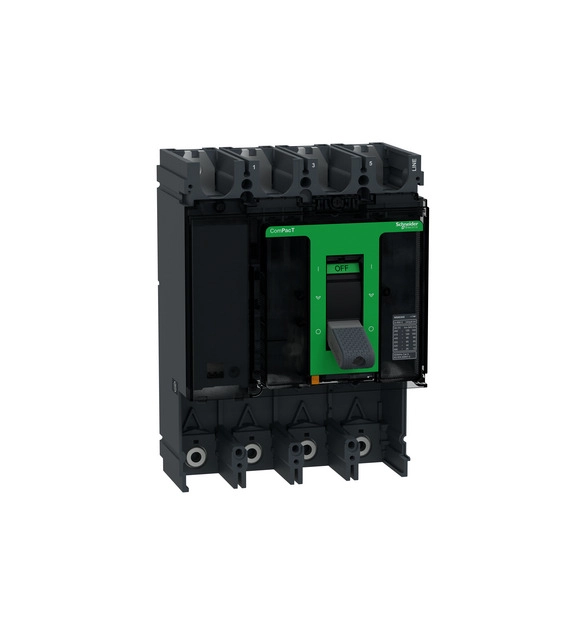

Контролен блок MicroLogic 6.0P, ComPacT NS630b до NS1600 фиксиран ръчно управление, селективни защити и защита от земно късо сединение
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Number of poles
3
-
Device construction
EV009211
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as change-over contact
-
Number of auxiliary contacts as normally open contact
-
Motor drive integrated
FALSE
-
Degree of protection (IP)
EV006415
-
Rated permanent current Iu
630
-
Complete device with protection unit
FALSE
-
Type of control element
EV000421
-
Rated voltage
690
-
Position of connection for main current circuit
EV007926
-
Integrated earth fault protection
FALSE
-
Motor drive optional
TRUE
-
Suitable for DIN rail (top hat rail) mounting
FALSE
-
With switched-off indicator
TRUE
-
With integrated under voltage release
FALSE
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
50
-
DIN rail (top hat rail) mounting optional
TRUE
This device is an electronic control unit MicroLogic 7.0P for ComPacT NS630-NS1600 circuit breakers, withdrawable and manually operated. ComPacT NS is designed to optimize space and breaking capacity, it is an optimal choice for all standard and specific applications. MicroLogic control unit has a new design and colour (dark grey). The control unit rating is fixed by an additional long time rating plug which has to be ordered separately through the product selector. This control unit has selective and earth-leakage protections and is designed to protect power circuits and loads. MicroLogic 7.0P control unit provides an overload protection (true rms and adjustable long time protection). MicroLogic 7.0P control unit provides adjustable short-circuit protections (rms short time and instantaneous protections). MicroLogic 7.0P control unit provides an adjustable residual earth-leakage protection. The control unit rating is fixed by an additional long time rating plug which has to be ordered separately through the product selector. MicroLogic 7.0P is equipped with a digital LCD screen and displays power (power meter) and rms values of currents. MicroLogic P type indicates overloads with an alarm LED and is able to display the trip cause through 4 others LEDs. MicroLogic P type is equipped with a digital LCD screen that displays all measurements and events. The MicroLogic P type calculates in real time all the electrical values (V, A, W, VAR, VA, Wh, VARh, VAh, Hz), power factors and cos phi factors. ComPacT is compliant with IEC 60947-1 and IEC60947-2 international standards. ComPacT NS can be integrated within Schneider Electric EcoStruxure Power architecture. ComPacT NS is part of the global Schneider Electric Environmental Program.
