СКУ: LXM32ICAN

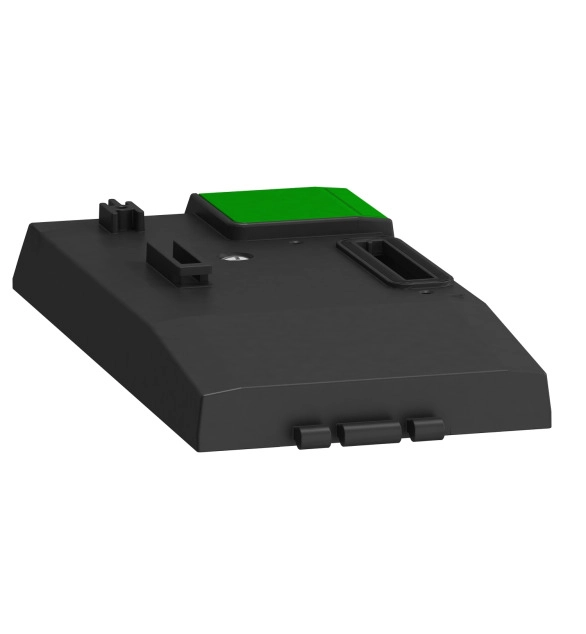

контролен блок LXM32i - CANopen/CANmotion за Lexium 32i

  • Brand
    Schneider Electric
  • Supporting protocol for SERCOS
    FALSE
  • Supporting protocol for INTERBUS-Safety
    FALSE
  • Supporting protocol for AS-Interface Safety at Work
    FALSE
  • Supporting protocol for DeviceNet Safety
    FALSE
  • Supporting protocol for EtherNet/IP
    FALSE
  • Supporting protocol for Foundation Fieldbus
    FALSE
  • Supporting protocol for SafetyBUS p
    FALSE
  • Supporting protocol for PROFINET CBA
    FALSE
  • Supporting protocol for PROFINET IO
    FALSE
  • Supporting protocol for PROFIsafe
    FALSE
  • Supporting protocol for ASI
    FALSE
  • Supporting protocol for PROFIBUS
    FALSE
  • Supporting protocol for TCP/IP
    FALSE
  • Supporting protocol for KNX
    FALSE
  • Supporting protocol for CAN
    FALSE
  • Supporting protocol for INTERBUS
    FALSE
  • Supporting protocol for DeviceNet
    FALSE
  • Supporting protocol for Modbus
    FALSE
  • Supporting protocol for Data-Highway
    FALSE
  • Supporting protocol for LON
    FALSE
  • Supporting protocol for SUCONET
    FALSE
  • Degree of protection (IP)
    EV000154
  • Supporting protocol for other bus systems
    FALSE
  • With optical interface
    FALSE
  • Number of analogue outputs
    1
  • With control element
    FALSE
  • Number of digital inputs
    6
  • With PC connection
    FALSE
  • Supporting protocol for BACnet
    FALSE
  • Number of digital outputs
    2
  • Mains frequency
    EV008015
  • Relative symmetric net voltage tolerance
    10
  • Relative symmetric net frequency tolerance
    5
  • Application in domestic- and commercial area permitted
    FALSE
  • Integrated breaking resistance
    FALSE
  • Application in industrial area permitted
    TRUE
  • 4-quadrant operation possible
    FALSE
  • Number of analogue inputs
    3
  • Type of converter
    EV000154
  • Max. output frequency
    8
  • Number of phases output
    EV000154
  • Max. output voltage
    24
  • Number of phases input
    EV000154
  • Number of HW-interfaces parallel
  • Number of interfaces PROFINET
  • Number of HW-interfaces serial TTY
  • Number of HW-interfaces USB
  • Number of HW-interfaces RS-422
  • Number of HW-interfaces RS-485
  • Number of HW-interfaces industrial Ethernet
  • Number of HW-interfaces RS-232
  • Number of HW-interfaces other

This product is part of the Lexium 32i range, an offer integrated servo drive from 0.6kW to 2.2kW. This control unit provides 2 safety discrete inputs, 4 logic discrete inputs and 2 positive or negative logic outputs. It is easy to integrate and maintain. It is furnished with M12 connectors for CANmotion, M12 for CANopen, RJ45 for Modbus. It is a control unit with a discrete input voltage of 24V DC and a discrete output voltage of 30V DC. Signals are controlled by servo motor encoder feedback. It is an IP65 rated product. It weighs 0.636kg. It is suitable for applications involving high-precision, dynamic positioning such as material handling, material working, packaging and printing. This product is certified by CE, TUV, CSA, RoHS and UL. It meets EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. With servo motor and servo drive integrated in one housing, the Lexium 32i is designed for application areas requiring high precision and advanced motor control.
