СКУ: A9C70134
ARA автоматично повторно затваряне Аux за iC60 3P-4P - 4 Prog
-
Brand
Schneider Electric
-
Voltage type for actuating
EV000460
-
Rated voltage
230
-
With auto test for earth leakage function
FALSE
-
Suitable for max. number of poles main contact unit (total)
4
-
Device fitting
EV000646
-
Installed at the factory
FALSE
-
Number of contacts as normally closed contact
2
-
Suitable for max. current main contact unit
63
-
Number of contacts as change-over contact
-
Number of fault-signal switches
-
Number of contacts as normally open contact
-
Width in number of modular spacings
3.5
-
Rated switch current
1
-
Additional equipment
EV009773

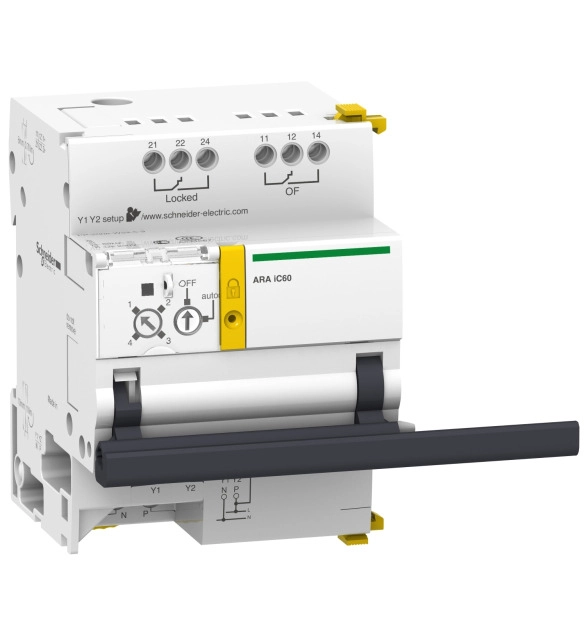

This Acti9 ARA iC60 automatic recloser auxiliary is dedicated for iC60 circuit breakers. It performs 4 programs of automatic reclosing of the associated protection device after tripping. It increases the availability of installations without supervision, isolated, hard of access and deamnding very great availability by restoring them to operation without intervention by personnel in the event of a transient fault. The width in 9mm pitches is 7. This device controls 4P installations. The operator can choose predefined reclosing programm which allows the safety and availability of facilities to be reconciled taking into account the facility environment. The Un rated voltage is 230VAC. The operating frequency is 50Hz or 60Hz. The circuit is secured in a safe position using the padlocking device. The operating temperature is -25°C to + 60°C. The storage temperature is -40°C to + 85°C.
