Контактор, TeSys F, 3P(3NO), AC-1, <=690V 1260 A, coil 220V AC | Spark & Co
  • 3D
|

СКУ: LC1F1250M7

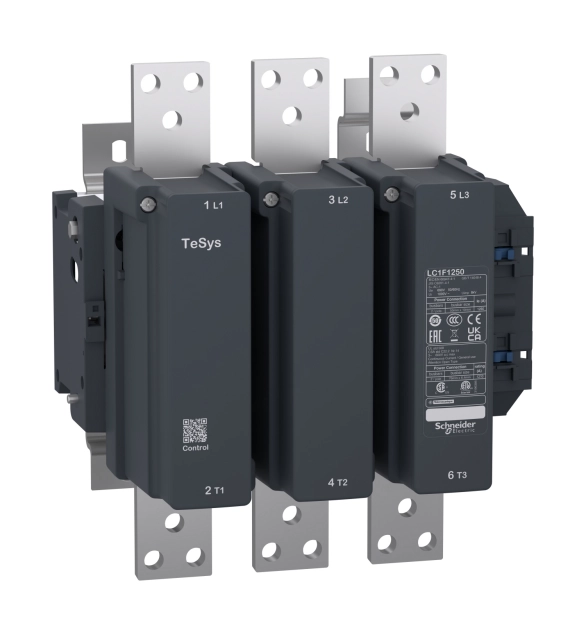

Контактор, TeSys F, 3P(3NO), AC-1, <=690V 1260 A, coil 220V AC

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Rated operation power at AC-3, 400 V
    18.5
  • Voltage type for actuating
    EV000460
  • Rated control supply voltage Us at AC 50HZ
    380
  • Number of auxiliary contacts as normally open contact
    1
  • Number of auxiliary contacts as normally closed contact
  • Modular version
    FALSE
  • Number of normally closed contacts as main contact
  • Number of normally open contacts as main contact
    3
  • Rated operation current Ie at AC-1, 400 V
    50
  • Rated operation current Ie at AC-3, 400 V
    38

TeSys K contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW/400V), and for non-inductive load control applications up to 20A/690V AC-1. It provides a 220V 50/60Hz AC coil, 1NO built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC).
