СКУ: LC2D09KUE

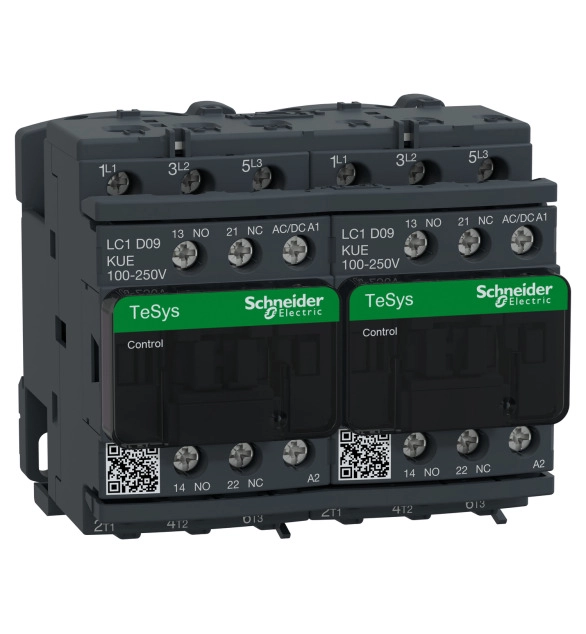

TeSys D реверсивен контактор - 3P - <= 440 V - 9 A AC-3 - 100...250 V AC/DC бобина
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Rated operation power at AC-3, 400 V
4
-
Degree of protection (IP)
EV006405
-
Voltage type for actuating
EV000509
-
Rated control supply voltage Us at DC
100
-
Rated control supply voltage Us at AC 50HZ
100
-
Rated control supply voltage Us at AC 60HZ
100
-
Type of electrical connection for auxiliary- and control current circuit
EV000415
-
Rail mounting possible
TRUE
-
Degree of protection (NEMA)
EV000154
-
Function
EV003958
-
Number of normally open contacts as main contact
3
-
Rated operation power NEMA
3.73
-
Rated operation current Ie at AC-3, 400 V
9
-
Rated operation current Ie at AC-1, 400 V
20
-
Number of normally closed contacts as main contact
TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 9A/440V AC-3/3e (4kW@400V). It provides low consumption 100-250V AC/DC coils with electronic control, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
