СКУ: LC1D25U7

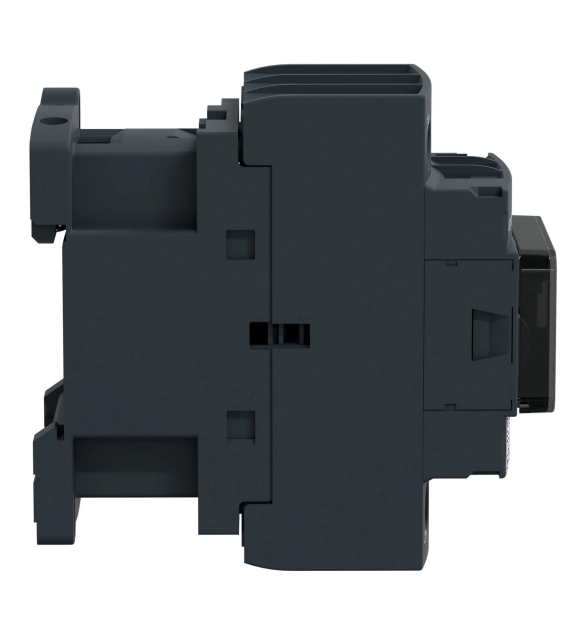

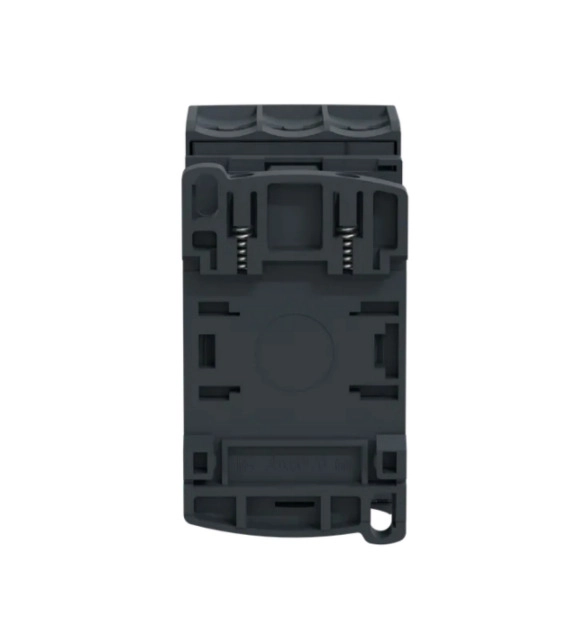

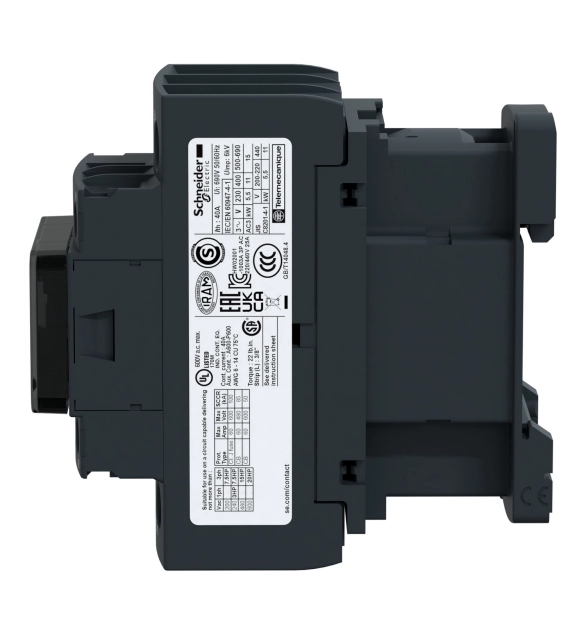

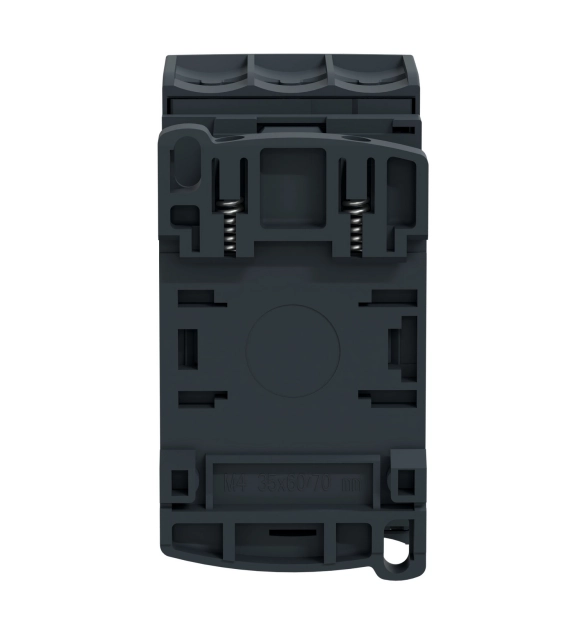

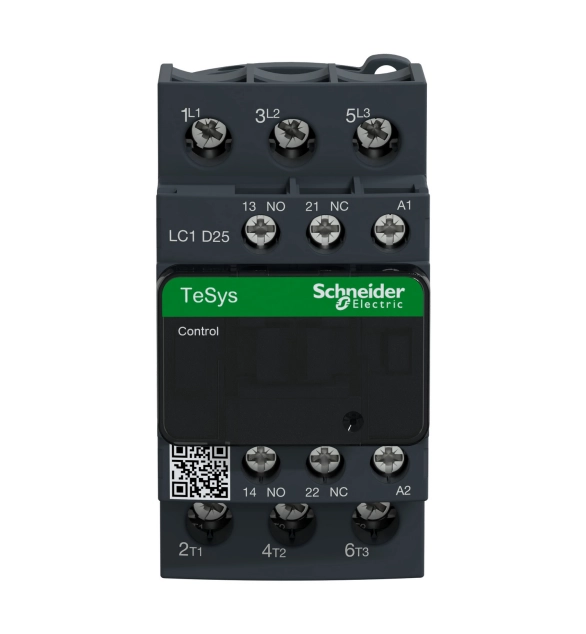

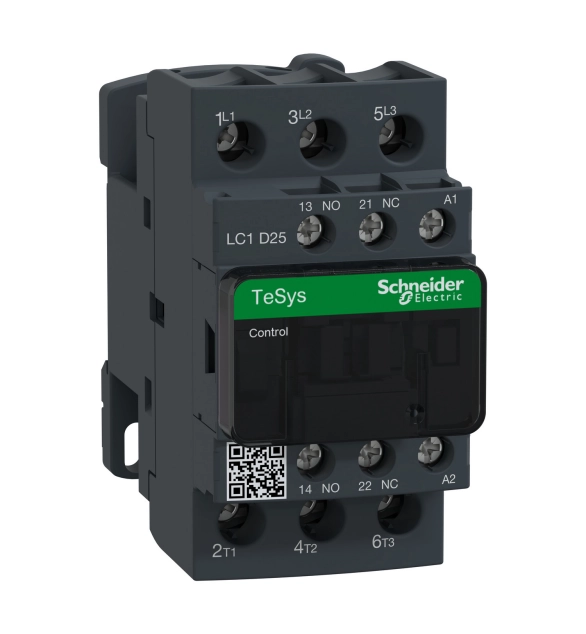

Контактор 25А/240V 1F+1O LC1D25U7
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Rated operation power at AC-3, 400 V
11
-
Voltage type for actuating
EV000460
-
Rated control supply voltage Us at AC 50HZ
240
-
Rated control supply voltage Us at AC 60HZ
240
-
Number of auxiliary contacts as normally closed contact
1
-
Number of auxiliary contacts as normally open contact
1
-
Modular version
FALSE
-
Number of normally open contacts as main contact
3
-
Rated operation current Ie at AC-1, 400 V
40
-
Rated operation current Ie at AC-3, 400 V
25
-
Number of normally closed contacts as main contact
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 25A/690V AC-3/3e (11kW/400V). It provides a 240V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
