СКУ: 19059

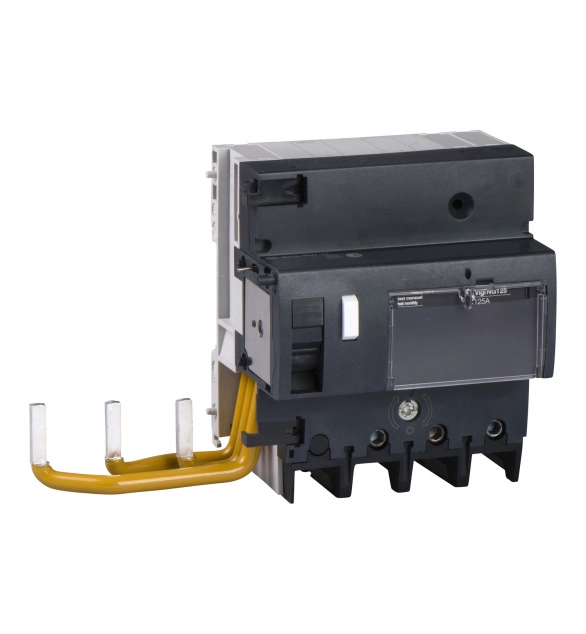

Доп. контакт SDV NC за VIGI NG125
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Width in number of modular spacings
6
-
Frequency
50
-
Built-in depth
47
-
Rated insulation voltage Ui
690
-
Additional equipment possible
TRUE
-
Rated impulse withstand voltage Uimp
8
-
Rated voltage
400
-
Concurrently switching neutral conductor
TRUE
-
Voltage type
EV000509
-
Flush-mounted installation
FALSE
-
Explosion-proof
FALSE
-
Connectable conductor cross section solid-core
1.5
-
Over voltage category
4
-
Ambient temperature during operating
-30
-
Connectable conductor cross section multi-wired
1
-
Pollution degree
3
-
Rated current
25
-
Number of poles (total)
4
-
Number of protected poles
4
-
Release characteristic
EV000074
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
100
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
50
This Acti9 Vigi NG125 electrical auxiliary is a fault indicating contact. It is dedicated to Acti9 Vigi NG125. It is used for remote indication of the position of the associated device. It has 1 position switch with contacts type 1 NC. The width in 9mm pitches is 1. The operating frequency is between 50Hz and 60Hz. The In rated current is from 0.1A to 1A (AC-14) at the rated voltage of 250VAC. The dimensions are (W) 8.8mm x (H) 36mm x (D) 34.64mm. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 85°C.
