СКУ: INS52121
Подова кутия M - метал - IP20 - 4 Модула
-
Brand
Schneider Electric
-
Bottom plate
FALSE
-
Min. height finishing layer
70
-
Nominal dimension
200
-
Built-in opening for floor column
FALSE
-
Levelling range
70
-
Suitable for sub-floor duct overhead closed
FALSE
-
Decoupling possibility cover from base unit
TRUE
-
Duct height
28
-
Duct width
150
-
Suitable for floor duct countersunk (closed)
TRUE
-
Suitable for placing of sealing
FALSE
-
Number of appliances to build in
4
-
Built-in opening for built-in unit
EV000382
-
Material side wall
EV007528

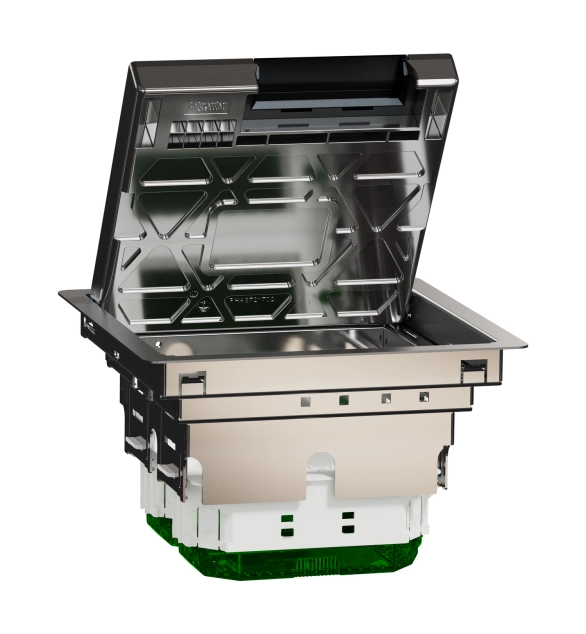

Schneider Electric Unica System+ floor outlet box INS52121 is in color grey with 4 modules. Its matching mounting box can be recessed into the surface of the wall with flush mounting type. The floor outlet box is made of metal, making it as resistant as possible. The lid to be quick-mounted onto casing. It can be fitted with floor material up to 15 mm thickness. The mounting frames are snapped into the casing. The height of the mounting frame is adjustable in three positions. This device is compatible with Unica outlet. It is 200 mm in width, 82 mm in height, 200 mm in depth. Its fixing mode is snap-fitted, strain relief. This product is sold in set of 1 piece. Besides, the IP rating of this device is IP24. And it is mercury free as well as heavy metal free, taking care of the environment and your health all the time. Unica System+, a range of innovative, stylish workplace solutions that are flexible and easy to install.
