СКУ: PKF32W435
Контакт за стена 32А 3Р+N+Е IP44 82221 PKF32W435
-
Brand
Schneider Electric
-
Material
EV000139
-
Cable entry
EV004016
-
Connection system
EV001008
-
Voltage according to EN 60309-2
EV011415
-
Identification colour
EV000233
-
Clock hour position
6
-
Military model
FALSE
-
Number of poles
5
-
Model
EV000384
-
Insulated mounting
TRUE
-
Degree of protection (IP)
EV006418
-
IEC-amperage
32
-
Type of fastening
EV009033

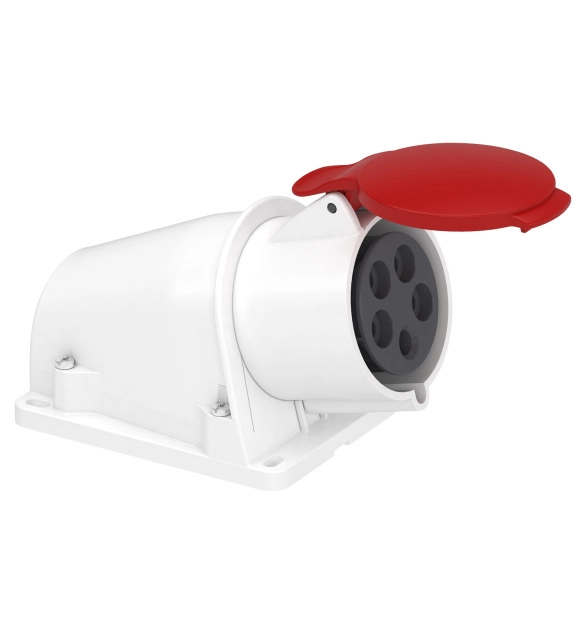

This Mureva PK socket with captive screws connection is angled wall mounted. It has 3P+N+E poles, rated current is 32A and the operating voltage is 380VAC to 415VAC. The dimensions of the base plate are (W) 90mm x (H) 120mm. The degree of protection is IP44 and IK08. The fire resistance is 750°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 32A is 2.5mm² to 10mm². The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
