СКУ: BMENOC0321C
Комуникационен модул, Modicon M580, Ethernet 3 subnets,Функция за IP препращане, Ethernet покритие
-
Brand
Schneider Electric
-
Supporting protocol for SERCOS
FALSE
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Radio standard GPRS
FALSE
-
Supporting protocol for INTERBUS-Safety
FALSE
-
Supporting protocol for AS-Interface Safety at Work
FALSE
-
Radio standard GSM
FALSE
-
Radio standard UMTS
FALSE
-
Supporting protocol for DeviceNet Safety
FALSE
-
Supporting protocol for Foundation Fieldbus
FALSE
-
Supporting protocol for SafetyBUS p
FALSE
-
Supporting protocol for PROFINET CBA
FALSE
-
Supporting protocol for PROFINET IO
FALSE
-
Supporting protocol for PROFIsafe
FALSE
-
Supporting protocol for ASI
FALSE
-
Radio standard Bluetooth
FALSE
-
Supporting protocol for PROFIBUS
FALSE
-
Appendant operation agent (Ex ia)
FALSE
-
Radio standard Wi-Fi 802.11
FALSE
-
Supporting protocol for KNX
FALSE
-
Supporting protocol for CAN
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Supporting protocol for INTERBUS
FALSE
-
IO link master
FALSE
-
Supporting protocol for DeviceNet
FALSE
-
Suitable for safety functions
FALSE
-
Supporting protocol for Data-Highway
FALSE
-
Supporting protocol for LON
FALSE
-
Supporting protocol for SUCONET
FALSE
-
Supporting protocol for other bus systems
FALSE
-
With optical interface
FALSE
-
Supporting protocol for EtherNet/IP
TRUE
-
Supporting protocol for TCP/IP
TRUE
-
Supporting protocol for Modbus
TRUE
-
With potential separation
FALSE
-
Redundancy
FALSE
-
Width
110
-
Height
53
-
Explosion safety category for dust
EV006566
-
Explosion safety category for gas
EV006563
-
Number of HW-interfaces industrial Ethernet
3
-
Type of data transmission
EV000154
-
Number of HW-interfaces parallel
-
Number of interfaces PROFINET
-
Number of HW-interfaces serial TTY
-
Number of HW-interfaces USB
-
Number of HW-interfaces Wireless
-
Number of HW-interfaces RS-422
-
Number of HW-interfaces RS-485
-
Number of HW-interfaces RS-232
-
Number of HW-interfaces other
-
Depth
118

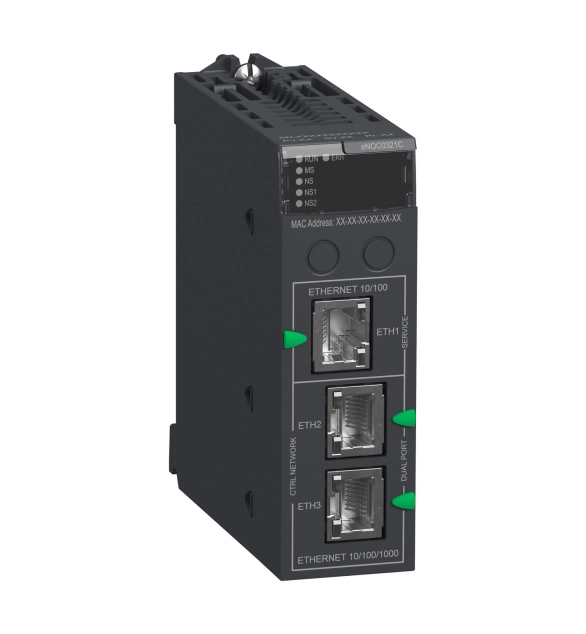

This communication module is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. BMENOC0321C module acts as an interface between the M580 PLC and other Ethernet network devices via the Modbus/TCP and EtherNet/IP communication protocols. Thanks to a protective coating on its circuit board, this product can be used in harsh environments with a temperature range from -25°C to +60°C/-13°F to 140°F. This product can help hybrid manufacturers to achieve better, measurable, earlier ROI and Up to 100% returns on their project investments in less than three months. The BMENOP300C module has 3 Ethernet ports. Communication services are bandwidth management, FDR server, Modbus TCP I/O scanner and messaging, EtherNet/IP I/O scanner and messaging, embedded 4-port switch, RSTP support, SNMP network administrator, embedded multiport switch etc. It measures 32x100x86mm and weighs 0.2kg. This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers. This product complies with CE, UL, CSA, RCM, EAC, UKCA, and ATEX/IECEx zone 2/22 standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications. This connection sub-base is compatible with the entire range of M580 CPUs and must be installed on a BMEXBPxxx - Ethernet + X-bus rack. The module is delivered in 1 packing unit. The communication module occupies one slot on the rack. This product can be used in combination with Modicon X80 (I/O, backplane, cable) and works with the EcoStruxure Control Expert programming software. Modicon M580 improves reliability and sustainability, as well as productivity with high performance and increases operating profitability due to efficient access to data.
