Картов превключвател, New unica, 1-полюса, 2-полюса, 10A, 2 модула, безвинтово свързване, боядисан, IP4X, антрацит

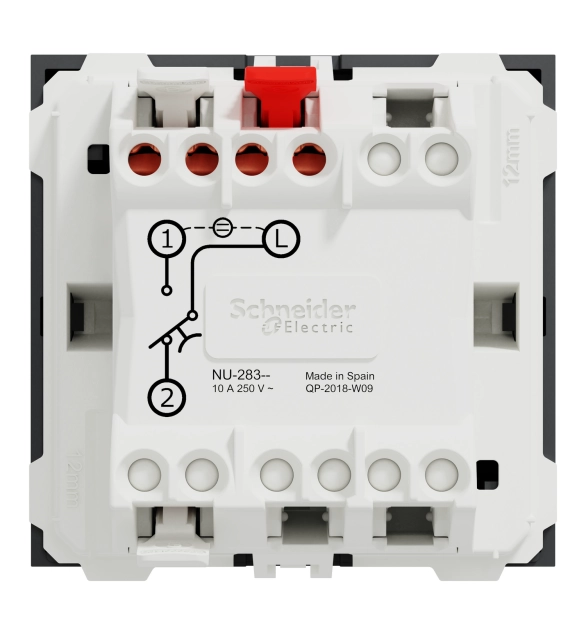

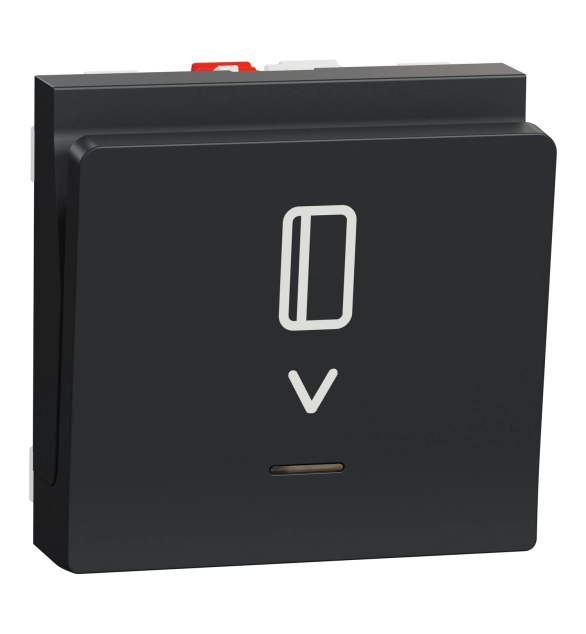

Discover the Schneider Electric New Unica Card Switch is a reliable 1-pole, 2-way switch suitable for various electrical applications. This is a 2-way card push-button and OFF retractive switch. The device has 2 modules. Its rated current is 10A. It is 45 mm in width, It is 45 mm in height, 39.95 mm in depth with an embedding depth of 21.15 mm. The surface finish is painted powder coated. The IP rating of this device is IP21D which is very high. This switch has screwless terminals connection terminals. Cu.Zn37, PBT (polybutylene terephthalate) GF30, PC (polycarbonate) GF10 FR, thermoplastic ABS-UV stabilized This switch is AENOR, CE, EAC, NF certified. The Ue-rated operating voltage is 250VAC. The rated current is 10A with a frequency of 50Hz. The color of the device is anthracite, and it has a matt surface finish. New Unica includes a suite of new designs, colors and materials. Users benefit from beautiful design that match their style and innovative products. The product complies with the IEC 60669-1 standard. It is AENOR, NF and VDE certified. It has CE product certification. This device enables a clip-in fixing mode and utilizes screwless terminals for secure connections. The dimensions of the product are (W) 45mm x (H) 45mm x (D) 39.95mm. Its embedding depth is 21.15mm. It has an IP4X and IK04 degrees of protection. The operating temperature is from -5°C up to +40°C and the storage temperature is from -5°C up to +50°C. New Unica is a modular range that offers a wide variety of products and functions with a sleek and timeless aesthetic that integrate well with other installations. It is designed with clever features to be flexible, easy to understand and quick to install, providing convenient solutions for customer requirements.
