СКУ: KSB32CP
Изходяща кутия 32A за 2 контакта
-
Brand
Schneider Electric
-
Width
108
-
Colour
EV000202
-
Height
165
-
Degree of protection (IP)
EV006420
-
Number of poles
5
-
Protection
EV000494
-
RAL-number
9001
-
Number of conductors (without earthing)
4
-
Phase selection
FALSE
-
Rated current at AC 50 Hz
32
-
Type of socket outlets
EV000154
-
With adjustment
FALSE
-
Branch off type
EV000381
-
Rated voltage at AC 50 Hz
230
-
Length
437.5
-
Number of other socket outlets
-
Number of CEE socket outlets
-
Number of NEMA socket outlets

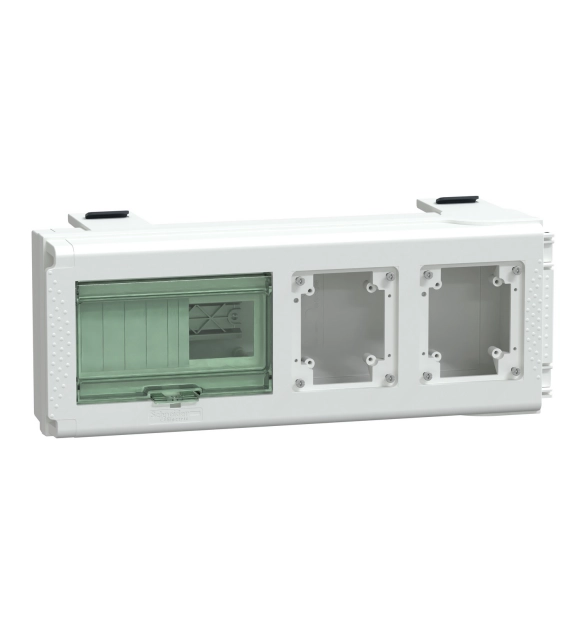

Canalis tap-off unit for KS. It's applied to power socket distribution and low power distribution with white RAL 9001 surface treatment. The operational voltage is from 230VAC 50/60Hz to 690VAC 50/60Hz. The rated operational current is 32A. It provided 3L+N+PE tap-off unit polarity with tap-off unit socket description and tap-off unit 2nd socket description are both free choice. It provided blanking plate and tap-off unit connector with phase selection, compatibility with modular device. Tap-off unit disconnection by drawing out. It's applied to TT busbar trunking, TN-S busbar trunking, TN-C busbar trunking, TT tap-off unit, TN-S tap-off unit earthing system. It provides IP55 protection which conforming to IEC 60529 standard. IK08 conforms to IEC 62262. It is compliant with both IEC 60439-2 and IEC 61439-6. It is compliant with Schneider Electric Environmental Data Program (RoHS, REACh, Product Environmental Profile, End of Life Instructions).
