СКУ: DF101N

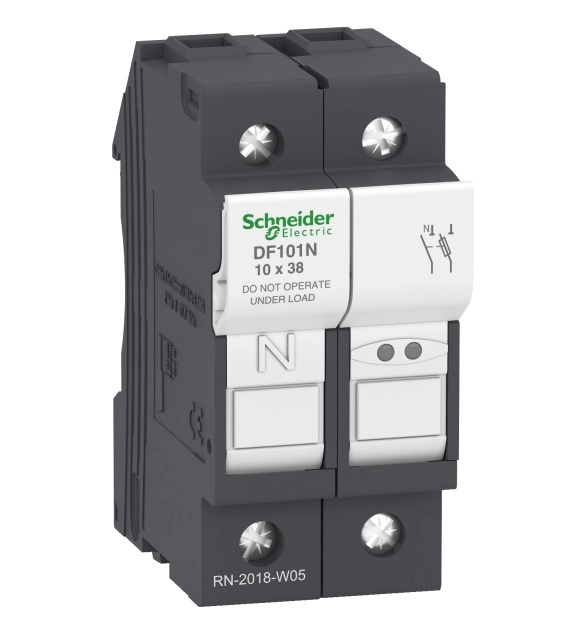

SCHNEIDER ELECTRIC Fuse carrier, 1P+N, 32A, 690VAC, fuse size 10x38mm
-
Brand
Schneider Electric
-
Built-in depth
56.5
-
Degree of protection (IP)
EV006405
-
Lockable
TRUE
-
Mounting method
EV000242
-
With optical defect indication
FALSE
-
Number of poles
2
-
Width in number of modular spacings
2
-
Concurrently switching neutral conductor
TRUE
-
Nominal voltage
690
-
For fuse size
EV010286
TeSys DF modular fuse carrier, 2 poles (1P+N) , for protection of control circuits up to 32A/690V. To be used with 10x38mm fuse links up to 32A and short circuit current up to 120kA at 400V. It provides a Neutral pole fitted with a locked tubular link. Compact (35mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Fuse links (10x38mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits) are available (to be ordered separately). Sold in lots of 6 units. Multi standards certified (IEC, UL recognized, CSA, CCC, EAC, Marine).
