СКУ: C6336M500

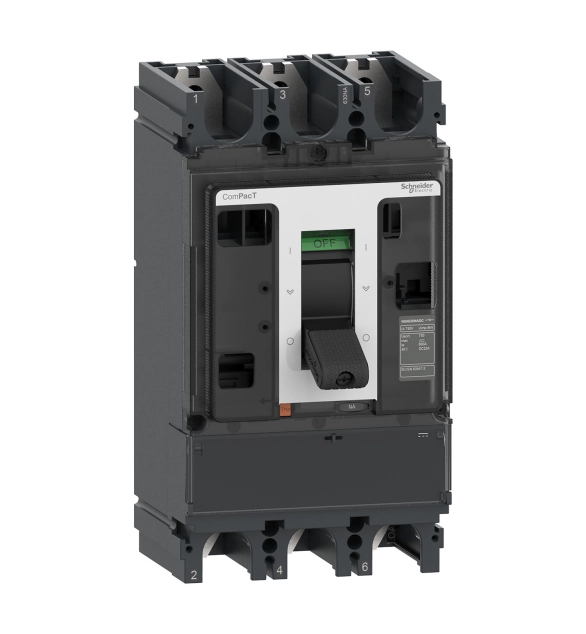

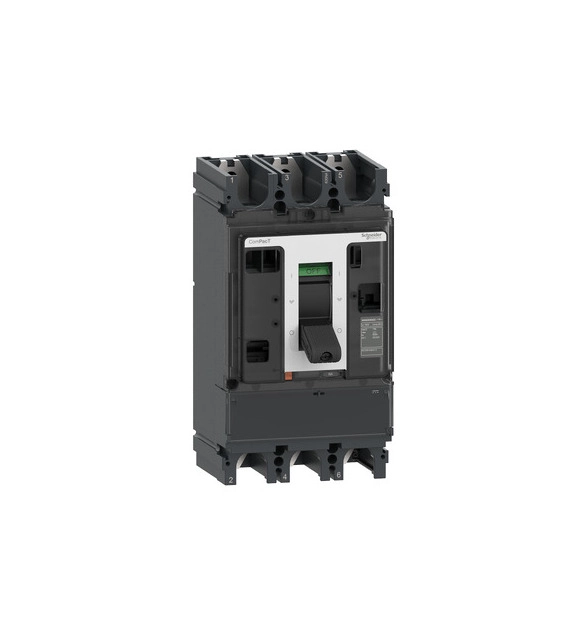

Изключвателно устройство NSX630 AC 3P3D 500A 6.3 EM MicroLogic
-
Brand
Schneider Electric
-
Number of poles
4
-
Rated permanent current Iu
630
-
Type of motor protection
EV014005
-
Voltage type for actuating
EV009206
-
Short-circuit release function
EV003977
-
With ground fault protection function
FALSE
-
Overload release current setting
250
-
Initial value of the undelayed short-circuit release - setting range
6900
-
End value adjustment range undelayed short-circuit release
6900
This MicroLogic 7.3 E AL (Energy) is a 3 poles 3d electronic trip unit used on ComPacT NSX 630 circuit breakers. This 570A rating electronic trip unit is an optimum choice for all standard and specific applications. It embeds adjustable long time protection against overloads. It provides also adjustable short-time protection and instantaneous protection against short-circuits. MicroLogic 7.3 E AL provides an earth leakage alarm without trip, that is available on the terminal block. MicroLogic 7.3 E AL indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. MicroLogic 7.3 E AL is equipped with a display module that gives energy measurement and allows fine adjustment settings. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.
