СКУ: C103MA003

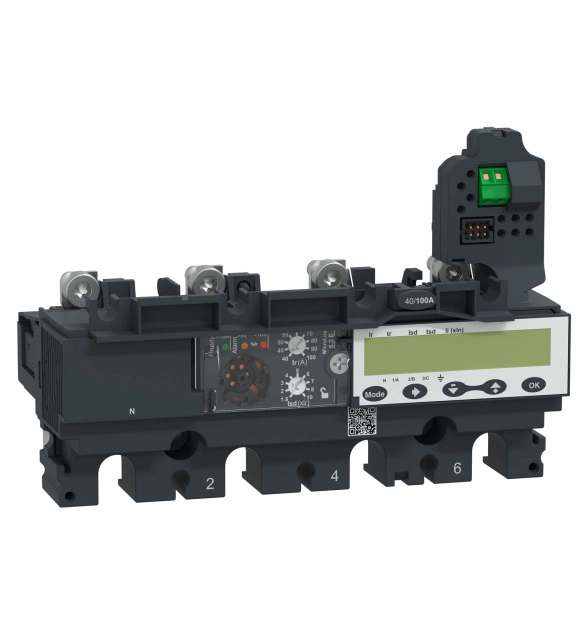

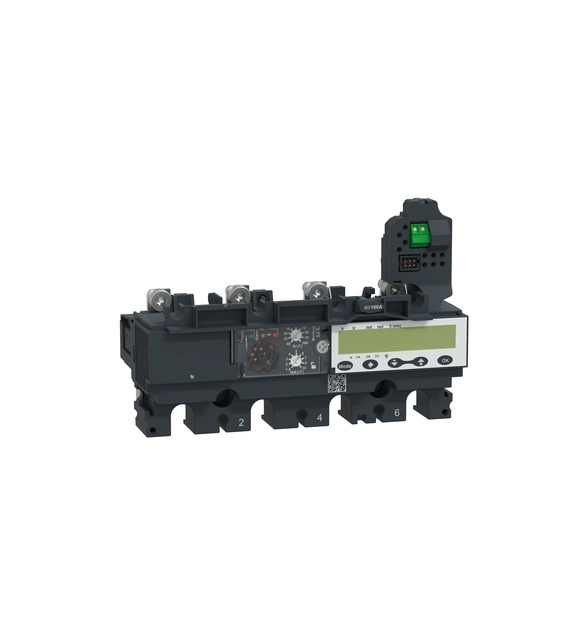

Изключвателно устройство NSX100 AC 3P3D 2.5A MA
-
Brand
Schneider Electric
-
Number of poles
3
-
Rated permanent current Iu
40
-
Rated control supply voltage Us at DC
24
-
Type of motor protection
EV014005
-
Voltage type for actuating
EV009206
-
Short-circuit release function
EV003977
-
With ground fault protection function
FALSE
-
Initial value of the undelayed short-circuit release - setting range
60
-
End value adjustment range undelayed short-circuit release
600
-
Overload release current setting
18
This TM80G is a 3 poles 3d thermal-magnetic trip unit used on ComPacT NSX 100/160/250 circuit breakers. This 80A rating thermal-magnetic trip unit is an optimum choice for generator protection applications. It embeds an adjustable thermal overload protection and a fixed magnetic protection against short-circuits. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.
