СКУ: C4047A400

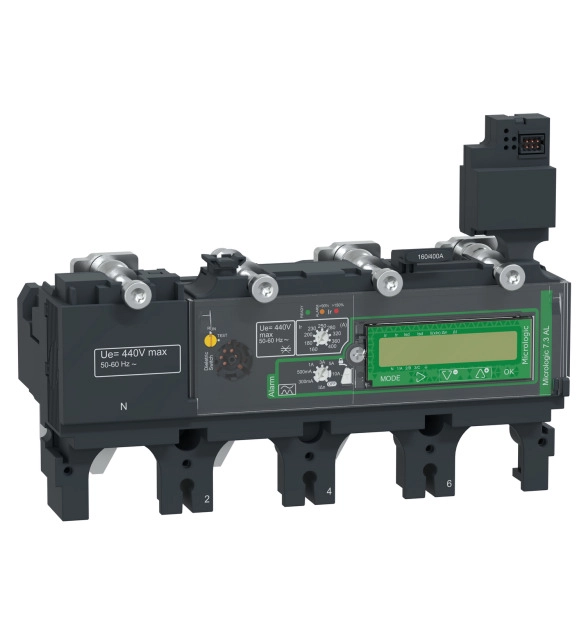

изключвателно устройство MicroLogic Vigi 7.3E AL, ComPacT NSX400/630, 4P, основни защити, аларма за утечка към земя, електромер, 400A
-
Brand
Schneider Electric
-
Number of poles
4
-
Rated permanent current Iu
400
-
Rated control supply voltage Us at DC
24
-
Type of motor protection
EV014005
-
Voltage type for actuating
EV009206
-
Short-circuit release function
EV003977
-
With ground fault protection function
FALSE
-
Initial value of the undelayed short-circuit release - setting range
600
-
End value adjustment range undelayed short-circuit release
4800
-
Overload release current setting
160
This MicroLogic 7.3 E AL (Energy) is a 4 poles 4d electronic trip unit used on ComPacT NSX 400/630 circuit breakers. This 400A rating electronic trip unit is an optimum choice for all standard and specific applications. It embeds adjustable long time protection against overloads. It provides also adjustable short-time protection and instantaneous protection against short-circuits. MicroLogic 7.3 E AL provides an earth leakage alarm without trip, that is available on the terminal block. MicroLogic 7.3 E AL indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. MicroLogic 7.3 E AL is equipped with a display module that gives energy measurement and allows fine adjustment settings. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.
