СКУ: C4044A400
изключвателно устройство MicroLogic Vigi 4.3AL, ComPacT NSX400/630, 4 полюса, електронни основни защити, аларма към утечка на земя, 400A
-
Brand
Schneider Electric
-
Number of poles
4
-
Rated permanent current Iu
400
-
Type of motor protection
EV014005
-
Voltage type for actuating
EV009206
-
Short-circuit release function
EV003977
-
With ground fault protection function
FALSE
-
Initial value of the undelayed short-circuit release - setting range
4800
-
End value adjustment range undelayed short-circuit release
4800
-
Overload release current setting
160

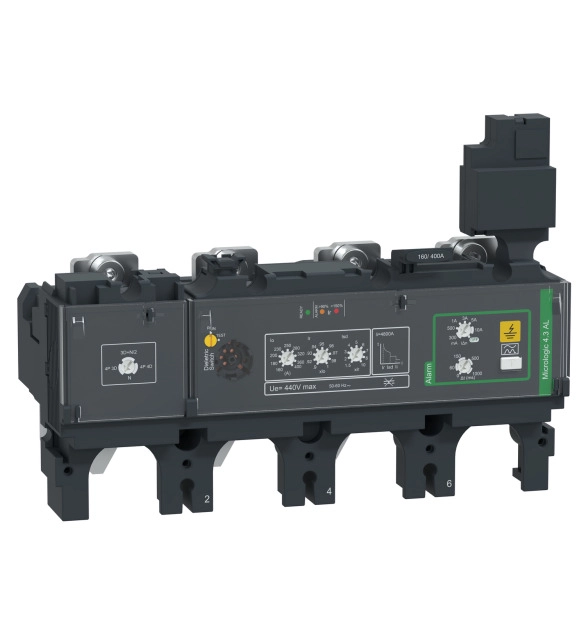

This MicroLogic 4.3 AL is a 4 poles 4d electronic trip unit used on ComPacT NSX 400/630 circuit breakers. This 400A rating electronic trip unit is an optimum choice for all standard and specific applications. It embeds adjustable long time protection against overloads. It provides also an adjustable short-time protection and a fixed instantaneous protection against short-circuits. MicroLogic 4.3 AL provides an earth leakage alarm without trip, that is available on the terminal block. MicroLogic 4.3 AL indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.
