СКУ: NSYCAG223LFHD
ClimaSys FHD за тежък режим на работа на открито - IP55 метална решетка - изрез 223x223
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006420
-
Material
EV000179
-
Suitable for enclosure building depth
800
-
Mounting method
EV000717
-
For max. number of fans
1
-
Surface finishing
EV006034
-
Width
62
-
With built-in filter
TRUE
-
Height
315
-
Suitable for enclosure building width
35
-
Diameter
222

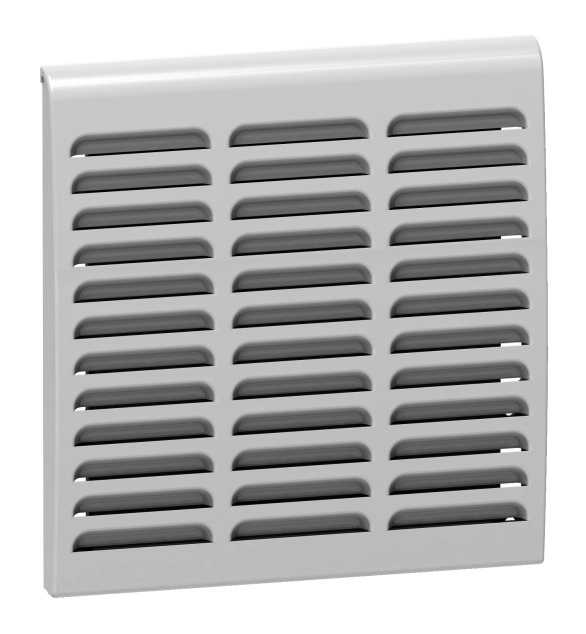

Outlet grille 62 x 315mm for ClimaSys CV fan, PanelSet SFHD, PanelSet S3HD and PanelSeT PHD The product is made from steel, polyamide 6 and stainless steel The kit is made of 1 support frame, 1 external part, 4 screws and 1 G3 M1 synthetic standard filter The external width is 300mm Ingress protection rating (according to IEC 60529) is IP55 ( outdoor ) Fixing by screws on sides of enclosure Mounting position is vertical Cut-out dimensions is 223 x 223mm Painted in grey (RAL 7035) external part and green (Pantone 355C) internal part Anti-corrosion protection is ensured by epoxy-polyester powder coating The product can be used in outdoor heavy duty applications in accordance with UL conforming to UL 94 and CE conforming to ENV 1630
