СКУ: A9L20200
iPRD 20 20 KA 340V 2P
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Integrated short-circuit protection
FALSE
-
System configuration TN-C
TRUE
-
Leakage-current free
FALSE
-
System configuration DC
FALSE
-
System configuration TN
FALSE
-
System configuration IT
FALSE
-
System configuration TN-S
FALSE
-
Signalling at the device
EV000428
-
Max. conductor cross section solid (solid, stranded)
35
-
Max. conductor cross section flexible (fine-strand)
35
-
System configuration TN-C-S
FALSE
-
Mounting method
EV005503
-
System configuration other
FALSE
-
Integrated backup fuse
FALSE
-
Category type 2
TRUE
-
Max. continuous voltage AC
350
-
System configuration TT
TRUE
-
Nominal voltage AC
230
-
With remote signalling contact
FALSE
-
Number of conductors (without earthing)
1
-
Max. discharge surge current (8/20)
40
-
Max. overcurrent protection device, series connection (fuse)
80
-
Short-circuit breaking capacity (Isccr)
50
-
Voltage protection level
1.4
-
Construction size
EV006931
-
Nominal discharge surge current (8/20)
15
-
Voltage protection level L-N
1.4
-
Max. overcurrent protection device, parallel connection (fuse)
63

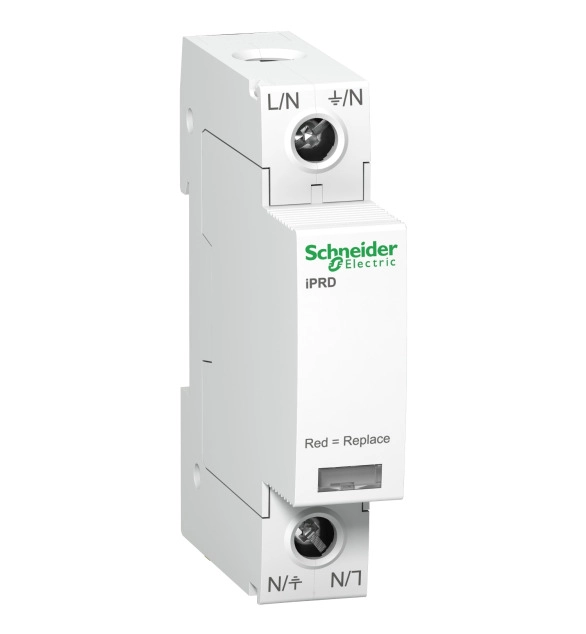

This Acti9 iPRD20 surge arrester protects 1P+N installations. It allows quick replacement of damaged cartridges. This Type 2 device is recommended for medium risk level and incoming panel board. It can be turned over to allow the phase/neutral/earth cables to enter through either the top or the bottom. The associated circuit breaker Isc breaking capacity can go up to 50kA. This Acti9 iPRD20 is compatible with TT and TN-S earthing system. The Uc maximum continuous operating voltage in common mode is 260VAC between neutral and earth, and 350VAC between phase and earth. The Up Voltage protection level in differential mode (between phase and neutral) is 1.1kV. The Up Voltage protection level in common mode (between neutral and earth) is 1.4kV. The Ue rated operational voltage is 230VAC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 36mm x (H) 85mm x (D) 69mm. The weight is 211g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product is compliant with EN 61643-11 and IEC 61643-11 standards.
