СКУ: PKY16G735
Индустриален присъединител за табло Mureva PK, бърза връзка, 16A, 3P+N+E, 400V, IP67
-
Brand
Schneider Electric
-
Material
EV000139
-
RAL-number
7035
-
Rated frequency
50
-
Identification colour
EV000233
-
Degree of protection (IP)
EV006423
-
Clock hour position
6
-
Military model
FALSE
-
Cable entry
EV000494
-
Voltage according to EN 60309-2
EV009026
-
Rated voltage
380
-
Number of poles
5
-
Drill hole distance vertical
85
-
Drill hole distance horizontal
77
-
Angle of plug
EV000164
-
IEC-amperage
16
-
Flange size vertical
100
-
Flange size horizontal
90
-
Connection system
EV005434

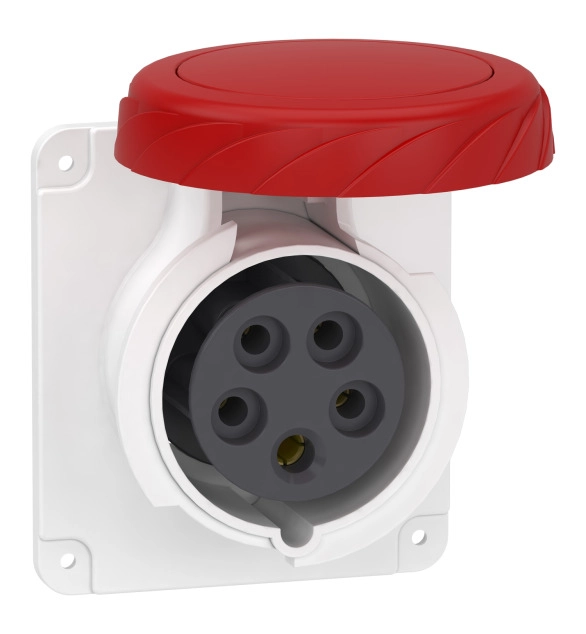

This Mureva PK socket with fast connection connection is straight panel mounted. It has 3P+N+E poles, rated current is 16A and the operating voltage is 400VAC. The dimensions of the base plate are (W) 90mm x (H) 100mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 16A is 1mm² to 2.5mm². The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
