СКУ: PKS61B
Индустриален контакт ШУКО 10/16A син
-
Brand
Schneider Electric
-
Number of poles
3
-
Model
EV000154
-
Material
EV000139
-
Material quality
EV000403
-
Connection system
EV001008
-
Angle of plug
EV000164
-
With hinged lid
TRUE
-
Nominal current
16
-
Nominal voltage
250
-
Halogen free
TRUE
-
For heavy conditions (according to VDE)
FALSE
-
Degree of protection (IP)
EV006419
-
Colour
EV000080
-
Flange size
EV000154

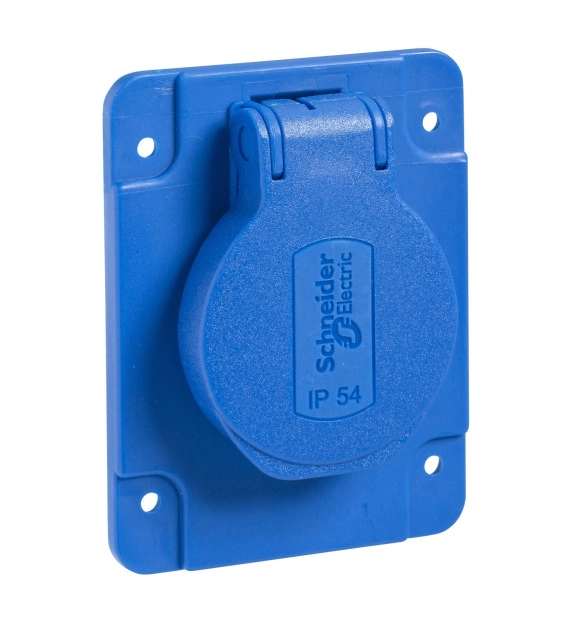

This Mureva PK socket with captive screws connection is straight panel mounted. It has 2P+E poles, rated current is 10A to 16A and the operating voltage is 250VAC. The dimensions of the base plate are (W) 65mm x (H) 85mm. The degree of protection is IP54 and IK09. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The color of the socket is blue to easily identify the operationg voltage. The frequency is 50Hz or 60Hz.
