СКУ: 83299

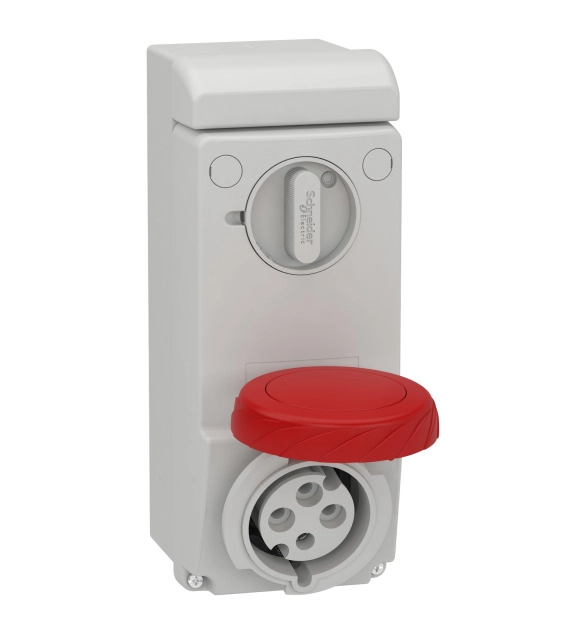

Индустриален контакт с блокировка, Mureva PK, стенен монтаж, 3h, 32A, 3P+E, 400V, IP65
-
Brand
Schneider Electric
-
Number of poles
3
-
Material
EV000139
-
RAL-number
7035
-
Rated voltage
400
-
Rated frequency
50
-
Connection system
EV001008
-
Identification colour
EV000233
-
Degree of protection (IP)
EV006423
-
Military model
FALSE
-
Angle of plug
EV000409
-
Phase inverter
FALSE
-
Construction type
EV005469
-
IEC-amperage
32
-
Voltage according to EN 60309-2
EV009025
-
Clock hour position
3
Mureva PK interlocked socket designed for industrial environments, including outdoor-harsh conditions, making it suitable for containerized setups. The Interlocked design prevents accidental disconnection under load and has a 3P+E outlet pole configuration. The cable entries are suitable for both flexible and rigid cables. The size of the cable entry in 32A is 25mm for 10mm² cable cross-section. The clock position of contact is 6h. Its Ue rated operational voltage is 380-415VAC at 50/60Hz and its Ie rated operational current is 32A. This interlocked socket with captive screw connection is wall-mounted. Operation temperature is from -25°C up to 40°C, and it reaches IP65 degree of protection. It is made up of self-extinguishing engineering polymer. The color of the product is grey (RAL 7035). Mureva PK industrial plugs and sockets expertly combine high performance with ease of installation and practicality. It is designed with providing exceptional levels of protection and ergonomics in mind. The product complies with the EN 60309-1, EN 60309-2 standards.
