СКУ: 83042
Индустриален контакт с блокировка, Mureva PK, стенен монтаж, 32A, 2P+E, 220V, IP44
-
Brand
Schneider Electric
-
Number of poles
3
-
Material
EV000139
-
RAL-number
7035
-
Rated frequency
50
-
Connection system
EV001008
-
Military model
FALSE
-
Cable entry
EV000494
-
Drill hole distance horizontal
77
-
Angle of plug
EV000164
-
Degree of protection (IP)
EV006418
-
IEC-amperage
32
-
Voltage according to EN 60309-2
EV009019
-
Identification colour
EV003609
-
Flange size vertical
65
-
Flange size horizontal
65
-
Rated voltage
20

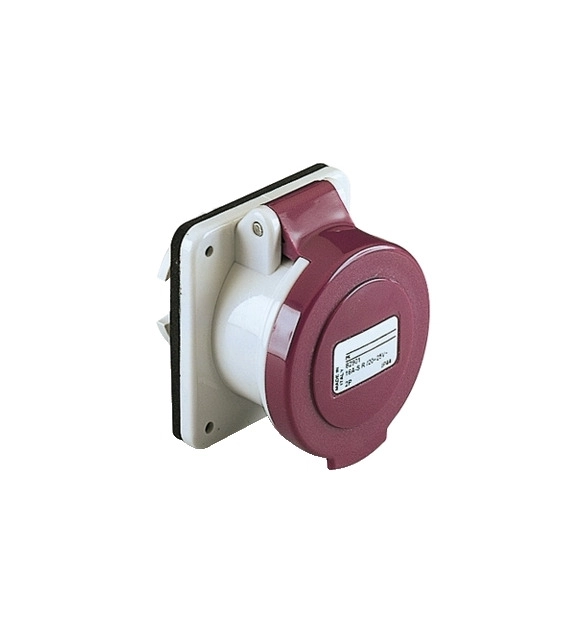

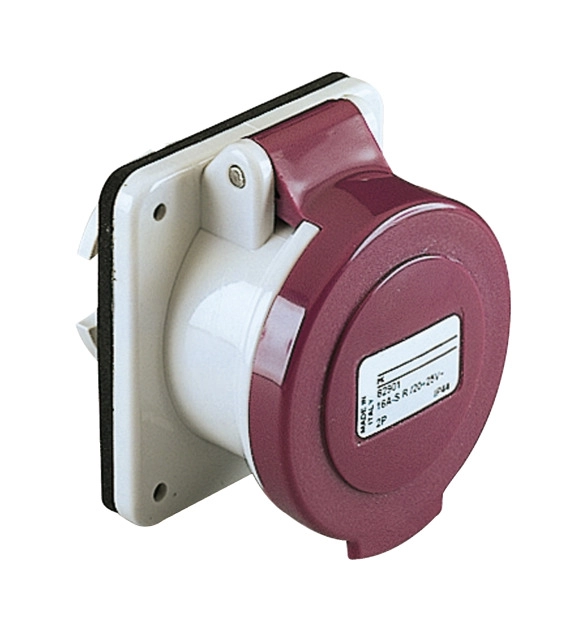

This Mureva PK socket with completely loosened captive screws connection is panel mounted. It has 2P poles, rated current is 32A and the operating voltage is 20VAC to 25VAC or 40VAC to 50VAC. The dimensions of the base plate are (W) 65mm x (H) 65mm. The degree of protection is IP44 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 32A is 2.5mm² to 6mm². The color of the socket is light grey (RAL 7035) with green easy identification of the operating voltage. The frequency is 100Hz to 200Hz. The clock position of secondary keyway is 4h.
