СКУ: 82181

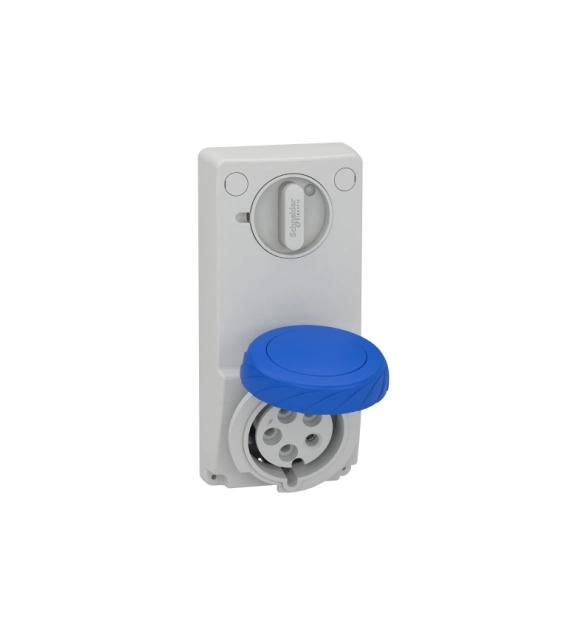

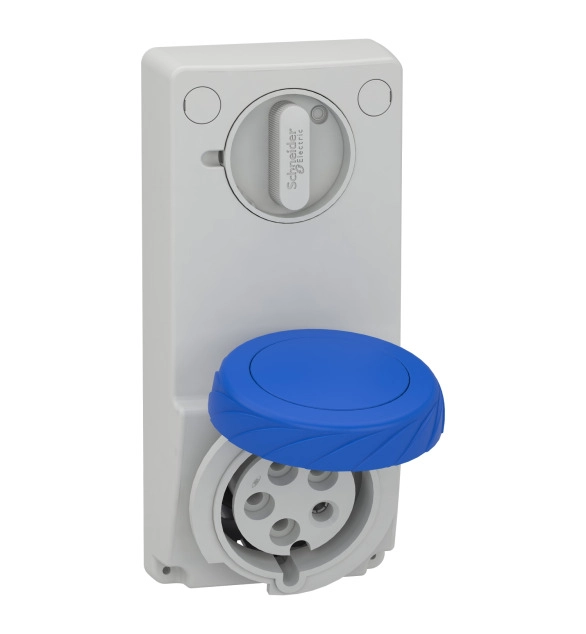

Индустриален контакт с блокировка, Mureva PK, монтаж в табло, 16A, 2P+E, 220V, IP65

  • Brand
    Schneider Electric
  • Material housing
    EV000139
  • Number of poles
    4
  • Voltage according to EN 60309-2
    EV011415
  • Identification colour
    EV000233
  • Clock hour position
    6
  • Military model
    FALSE
  • IEC-amperage
    16
  • Degree of protection (IP)
    EV006418
  • Empty locations on mounting rail
    FALSE
  • Model
    EV003157
  • Switch
    EV000551
  • With earth leakage switch
    FALSE
  • Type of switch
    EV005477
  • Protection
    EV011677

This Mureva PK interlocked socket with captive screws connection is panel-mounted. It has 3P+E pole, rated current is 32A and the operating voltage is 380VAC to 415VAC. The dimensions of the base plate are (W) 103mm x (H) 225mm. The degree of protection is IP65 and IK09. The fire resistance is 750°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 32A is 25mm for 10mm² cables. The color of the socket is grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
