СКУ: ZARBB7A11W

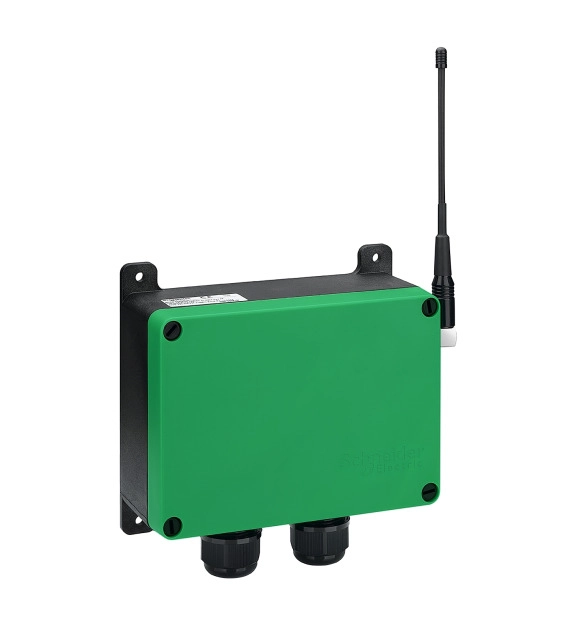

Harmony eXLhoist, joystick, Base station, 11 relays, 7 analog outputs, cable gland connection, 12...230 V AC, 12...24 V DC
-
Brand
Schneider Electric
-
Degree of protection (NEMA), front side
EV000154
-
Colour front ring
EV000291
-
Hole diameter
22.5
-
With front ring
TRUE
-
Suitable for illumination
FALSE
-
Switching function latching
FALSE
-
Number of command positions
3
-
Type of button
EV003619
-
Spring-return
TRUE
-
With protective cover
FALSE
-
Material front ring
EV000914
-
Labelled
TRUE
-
Construction type lens
EV000220
-
Degree of protection (IP), front side
EV000154
-
Colour button
EV000154
This product is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This distributed analogue/discrete module has 1 group of 2 discrete outputs, 4 discrete inputs, 4 analogue differential inputs and 2 analogue output with positive discrete input logic. It is an analogue/discrete module with a rated supply voltage of 24V DC, a discrete output current of 1A per point, 2A per group, 2A per module and a maximum power dissipation of 6W. It is furnished with 2 connectors for removable terminal blocks. Analogue input range of this product is ±10V, ±20mA, ±5V, 1V to 5V, 4mA to 20mA and analogue output range is ±10V 12bit and 0mA to 20mA 12bit. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height) and weighs 0.24kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. Momentum is a flexible, modular family of fundamental components that easily snap together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
