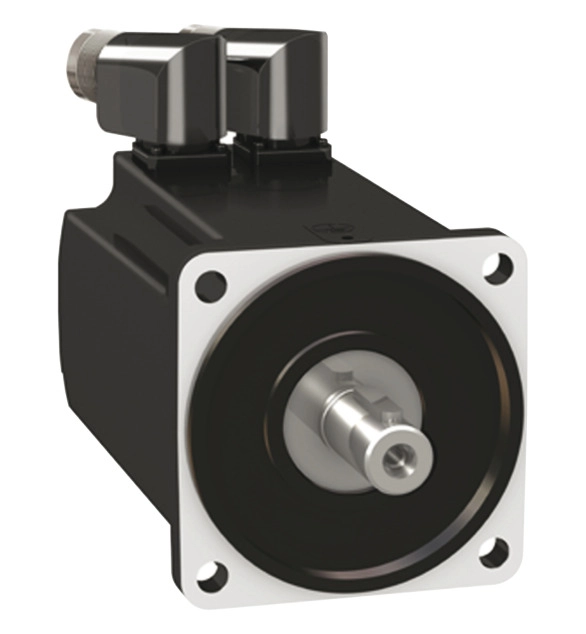

SCHNEIDER ELECTRIC Servo motor BMH, Lexium 32, 6.2Nm, 6000rpm, keyed shaft, with brake, IP54, 128 multiturn encoder

This product is part of the Lexium 32 range, an offer of servo motors from 0.15kW to 11kW. The 10-pole servo motor features maximum mechanical speed of 6000RPM and keyed shaft end with holding brake. It is an equipped with a multi-turn SinCos Hiperface® feedback with 1,31,072 points/turn x 4096 turns speed feedback resolution. It is a servo motor with a rated supply voltage of 480V, a continuous stall current of 5.04A and a continuous power of 2.36W. The shaft dimensions are 19mm (diameter) x 40mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP54 rated product. The length of this product is 202.3mm and the centering collar dimensions are 3.5mm (depth) x 95mm (diameter) with 115mm mounting hole. It weighs 6.4kg. This range is compatible with Lexium 32 servo drives. This product is compatible with LXM32.D18N4 at 400V to 480V three phase. It supports 100mm international standard flange mount with a natural convection cooling system. Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.
