СКУ: BMXDDO1612H
H DIG 16 OUT TRANS SINK
-
Brand
Schneider Electric
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Explosion safety category for dust
EV000494
-
Explosion safety category for gas
EV000494
-
Voltage type of supply voltage
EV000461
-
Appendant operation agent (Ex ia)
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Suitable for safety functions
FALSE
-
Supply voltage DC
24
-
Height
100
-
Digital inputs configurable
FALSE
-
Digital outputs configurable
TRUE
-
Type of output voltage
EV000461
-
Depth
150
-
Short-circuit protection, outputs available
FALSE
-
Redundancy
FALSE
-
Type of electric connection
EV000414
-
Number of digital inputs
-
Type of digital output
EV001529
-
Type of voltage (input voltage)
EV000461
-
Width
33
-
Input current at signal 1
0.65
-
Permitted voltage at output
19
-
Permitted voltage at input
19
-
Time delay at signal exchange
1.2
-
Number of digital outputs
32
-
Output current
0.1

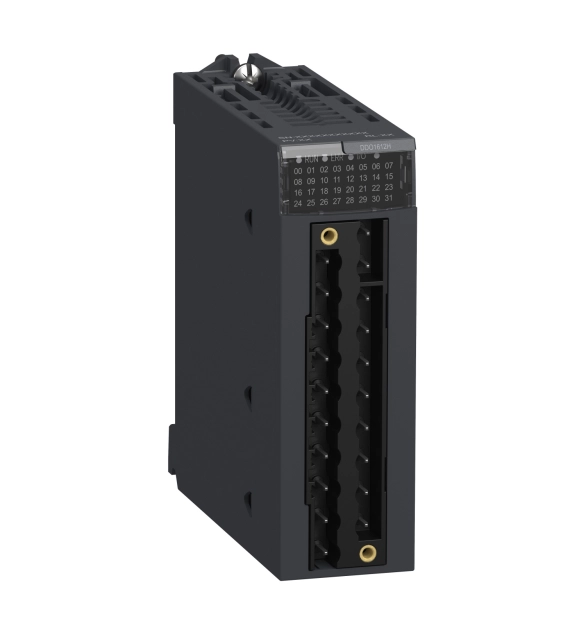

This discrete transistor output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 64 output channels and it is supplied with 24V DC (positive). This product complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. Protection types are reverse polarity protection, external short-circuit protection, overload protection and overvoltage protection. This product is IP20 rated and offers 148469 hours of MTBF. This discrete module has a weight of 0.150kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with two 40-way connectors. The product must be installed on the rack and fixed with 2 screws. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
