СКУ: GS2LG3

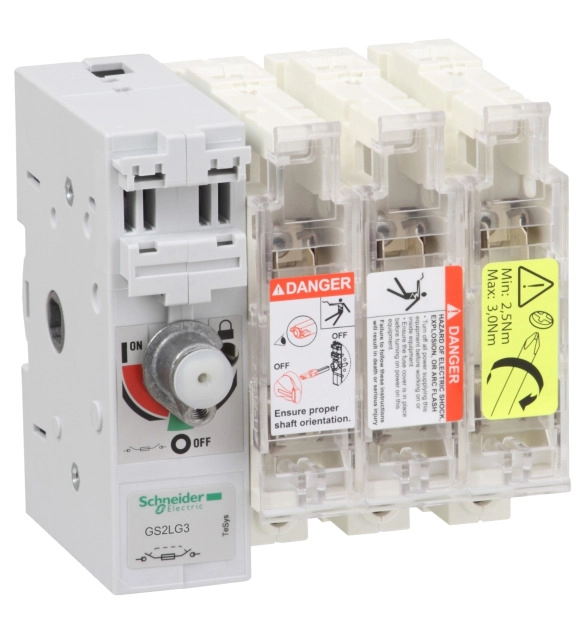

FUSE DISCONNECT SWITCH 3X 160A 0
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Version as emergency stop installation
FALSE
-
Number of poles
3
-
Version as safety switch
FALSE
-
Degree of protection (IP), front side
EV006405
-
Motor drive integrated
FALSE
-
Suitable for floor mounting
FALSE
-
Motor drive optional
FALSE
-
Version as main switch
TRUE
-
Rated permanent current Iu
160
-
Suitable for front mounting
FALSE
-
Cable entry
EV000154
-
Type of control element
EV005987
-
Suitable for busbar mounting
TRUE
-
Conditioned rated short-circuit current Iq
100
-
Max. rated operation voltage Ue AC
750
-
Equipped with connectors
FALSE
-
With error protection
FALSE
-
Rated short-time withstand current lcw
100
-
Suitable for fuses
EV008595
-
Rated operation power at AC-23, 400 V
80
-
Position control element
EV004731
TeSys GS fuse switch-disconnector, 3 poles (3P), 160A/750V, to be used with DIN blade fuse links size 0 up to 160A, for motor applications up to 80kW@400V AC-23. To be equipped with an external left-hand side mounting operating handle GS2AH (several models available). When the Product Is Used outside a control panel or for Voltage >=500Vac, Screw terminals to be equipped with upstream and downstream 3P terminal shrouds GS1AP33 (to be ordered separately), it provides high short circuit current rating 100kA@400V. Add-on auxiliary contact modules GS1AM (front mounting), GS1AN (side mounting), GS1AF (top mounting for blown signaling with stricker fuses) can complete the assembly (to be ordered separately). Type aM and gG size 0 blade fuse links without strickers DF2GA, DF2GN and with strickers DF4GA, DF4GN are available (to be ordered separately). Multi standards certified (IEC, Marine).
