СКУ: GS2V3

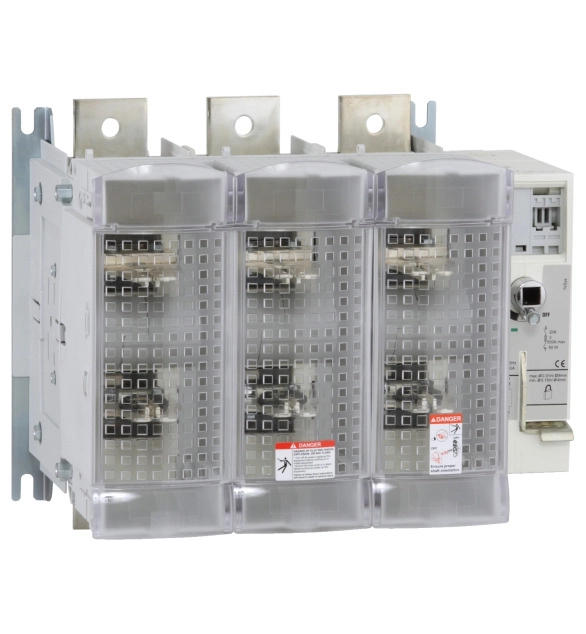

FUSE DISCONNECT SWITCH 3X 1250A 4
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Version as emergency stop installation
FALSE
-
Number of poles
3
-
Version as safety switch
FALSE
-
Degree of protection (IP), front side
EV006405
-
Motor drive integrated
FALSE
-
Suitable for floor mounting
FALSE
-
Motor drive optional
FALSE
-
Version as main switch
TRUE
-
Suitable for front mounting
FALSE
-
Rated operation power at AC-23, 400 V
560
-
Rated permanent current Iu
1250
-
Cable entry
EV000154
-
Type of control element
EV005987
-
Suitable for busbar mounting
TRUE
-
Conditioned rated short-circuit current Iq
100
-
Equipped with connectors
FALSE
-
With error protection
FALSE
-
Position control element
EV000154
-
Rated short-time withstand current lcw
100
-
Suitable for fuses
EV008596
-
Max. rated operation voltage Ue AC
1000
TeSys GS fuse switch-disconnector, 3 poles (3P), 1250A/1000V, to be used with DIN blade fuse links size 4 up to 1250A, for motor applications up to 560kW@400V AC-23. To be equipped with a direct operating handle GS1AH104 (to be ordered separately), or with an external operating handle GS2AH that can be front side, left-hand side, or right-hand side mounting (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 100kA@400V. Add-on auxiliary contact modules GS1AM (front mounting), GS1AN (side mounting), GS1AF (top mounting for blown signaling with stricker fuses) can complete the assembly (to be ordered separately). Type aM and gG size 4 blade fuse links without strickers DF2LA, DF2LN and with strickers DF4LA, DF4LN are available (to be ordered separately). Multi standards certified (IEC, Marine).
