СКУ: A9MEM1590

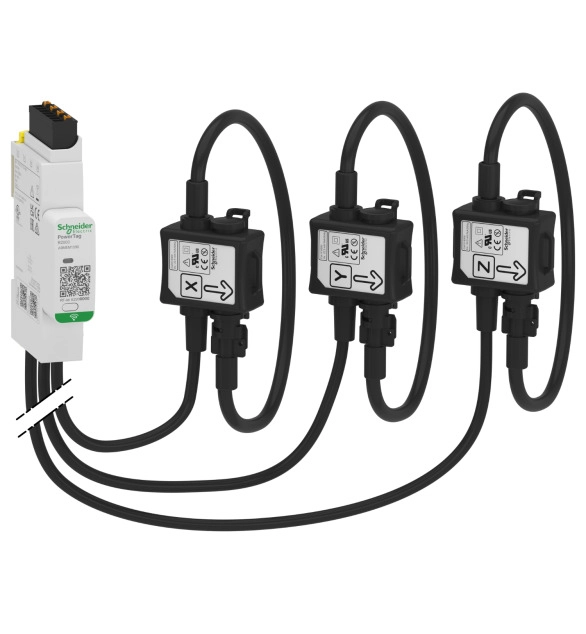

Енергиен сензор, PowerTag Rope 200A 3P/3P+N
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Width in number of modular spacings
1
-
Frequency
50
-
Calibrated
TRUE
-
Degree of protection (NEMA)
EV000599
-
Width
18
-
Depth
67.5
-
Model
EV010943
-
Approval
EV010951
-
Escapement mechanism
FALSE
-
Accuracy class
EV000074
-
Tariff type
EV009223
-
Pole type
EV010965
-
With lock code
FALSE
-
Type of meter
EV000101
-
Nominal voltage (Un) N-L
100
-
Height
105
-
Type of interface
EV000154
-
Pulse output
EV000494
-
Energy type
EV010946
-
Type of indication
EV000494
-
Measurement type load profile
FALSE
-
EEC40 signature
FALSE
-
Suitable for
EV011029
-
Nominal voltage (Un) L-L
173
-
Max. current (Imax)
200
-
Nominal current (In)
200
This PowerTag Energy R200 3P/3P+N is a wireless communication energy sensor. With its Rope design, it is dedicated to 3P and 3P+N networks rating up to 200A. It has to be associated with a concentror or a gateway to provide circuit monitoring and diagnosis down to load level. It is designed specifically for Energy Management, Load Monitoring and Power Availability applications. It incorporates accurate real-time measurements of active, reactive and apparent energy, active, reactive and apparent power, current, voltage and power factor. In case of power outage, it sends a voltage loss alarm and the current-per-phase value before being de-energized. PowerTag Energy R200 complies with IEC 61557-12 standard. It is a PMD-II/DD/K70/1. The Performance category is Class 1. The Imax maximum current is 200A. The Ib Base current is 30A. The Saturation current is 400A and the Ist Starting current is 120mA. The Un Rated voltages are Phase-to-neutral 100 to 277VAC +/- 20% and Phase-to-phase 173 to 480VAC +/- 20%. The maximum consumption is below or equal to 3VA. It can be either mounted on bare or insulated busbars or on cables. The product color is white (RAL9003). The weight is 360g. The degree of protection is IP20 (IP40 front face) and IK05. The operating temperature is between -25°C to +70°C. The storage temperature is between -40°C to +85°C.
