SCHNEIDER ELECTRIC Comb busbar, 63A, 5 tap-offs, 54mm pitch | Spark & Co
  • 3D
|

СКУ: GV2G554

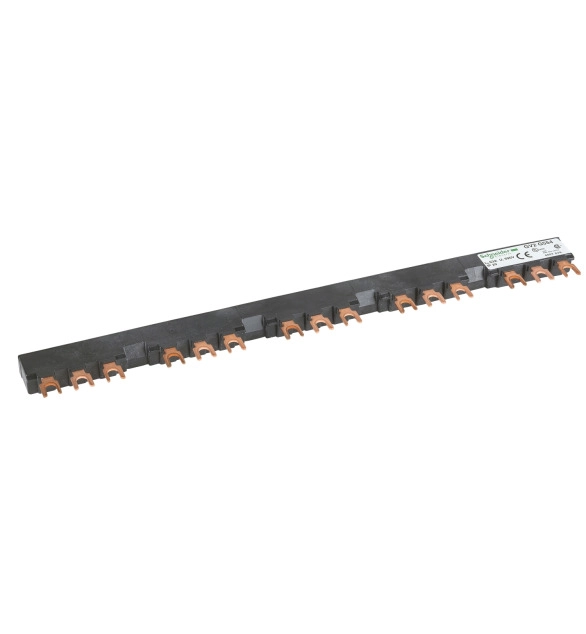

SCHNEIDER ELECTRIC Comb busbar, 63A, 5 tap-offs, 54mm pitch

  • Brand
    Schneider Electric
  • Rated permanent current Iu
    63
  • Number of poles
    3
  • Colour
    EV000206
  • Insulated
    TRUE
  • Suitable for devices with auxiliary switch
    FALSE
  • Number of phases
    3
  • Suitable for devices with N-conductor
    FALSE
  • Suitable for number of devices
    5
  • Max. rated operation voltage Ue
    690
  • Type of electric connection
    EV000197
  • Width in number of modular spacings
    54
  • Rated surge voltage
    6
  • Conditioned rated short-circuit current Iq
    11
  • Module width
    54
  • Length
    270

TeSys GV busbar set, 3 phases, 63A/690V, for the upstream parallel wiring of groups of motor starters composed of GV2 motor circuit breakers or LS1D32 fuse carriers. For use with screw clamp terminal devices, it is composed of 5 tap-off outlets for the paralleling of 5 devices with a pitch of 54mm. The use of a terminal block GV1G09 or GV2G05 is recommended to supply the busbar sets (to be ordered separately).
