СКУ: KSA1000DLR43A

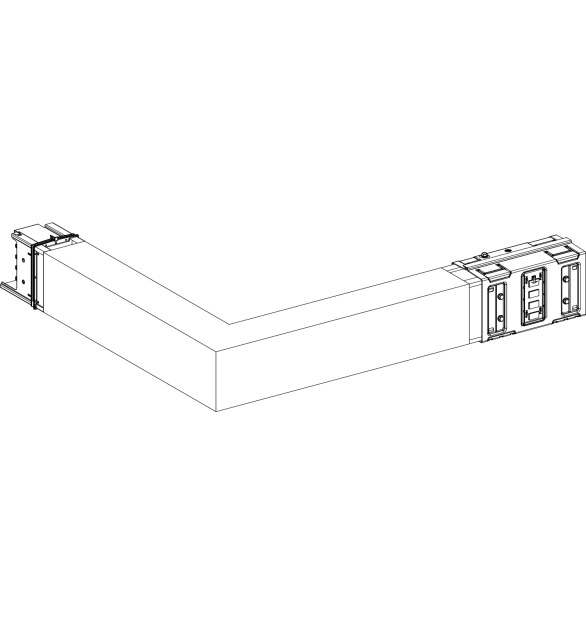

Elbow, Canalis KSA1000, алуминий, 1000A, sides A/B made to measure, turns right/left, 3L+N+PE, бял RAL9001
-
Brand
Schneider Electric
-
Colour
EV000202
-
Degree of protection (IP)
EV006420
-
Number of poles
5
-
RAL-number
9001
-
Flexible
FALSE
-
Number of conductors (without earthing)
4
-
Rated voltage at AC 50 Hz
230
-
Model
EV009899
-
Rated current at AC 50 Hz
1000
This is a straight length for Canalis KBB busbar trunking. Canalis KBB is designed for lighting and power socket distribution. The rated operational current is 40A at 35°C. The rated operational voltage is from 230VAC to 400VAC 50/60Hz. This straight length is made of 3 tap-off outlets maximum spaced every meter on the main circuit (front), and 2 tap-off outlets maximum on the adjacent circuit (rear). It embeds 2 independent electrical circuits with 3L+N+PE polarity. It provides IP55 protection conforming to IEC 60529 standard, which guarantees trunking protection against splashes and dust. It provides IK06 protection conforming to IEC 62262 standard against external mechanical impacts. The length is 3m, and the section is 46mm x 46mm. Sold in lots of 6 units. It is made off RAL 9003 white lacquered sheet steel. Canalis KBB is compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2).
