Сървър за автоматизация SpaceLogic, AS-B-24, 24 I/O точки, BACnet, MS/TP, modbus, мащабируем

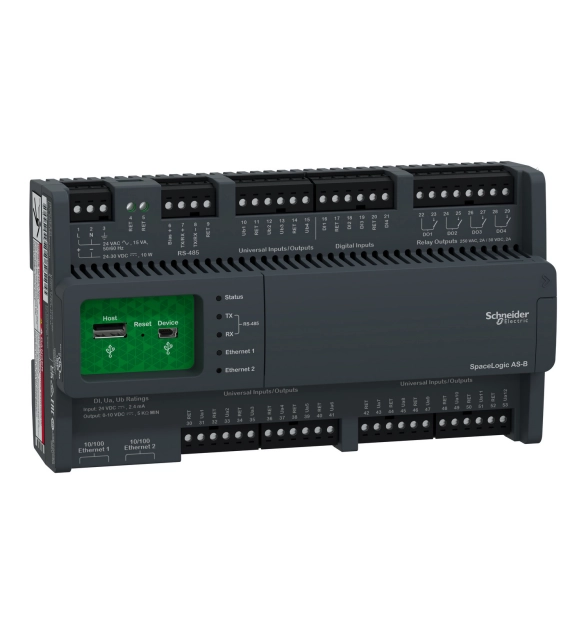

SpaceLogic Automation Server AS-B-24P is at the core of an EcoStruxure BMS. It performs functionality, such as control logic, trend logging and alarm supervision. It provides built-in I/O, and supports communication and connectivity to the field buses. It is a powerful device with built-in power supply and I/O, which makes it suitable for control applications at the plant room level of a BMS. The SpaceLogic AS-B server can act as a standalone server or controller using its built-in I/O and also monitor and manage field bus devices. It has a BACnet device profile of B-BC. Its dimensions are 110 mm (4.3 in.) in height, 198 mm (7.8 in.) in width and 64 mm (2.5 in.) in depth. The AS-B-24-P model features 24 I/O points with a versatile mix of I/O points and a variety of connectivity options. It supports the SpaceLogic IP-IO modules for I/O expansion and the SpaceLogic Zigbee Adapter for Zigbee wireless connectivity. Available spare parts are terminal blocks (SXWASBCON10001) and an installer kit (SXWASBINS10001). The AS-B-24-P model is hardware only; an AS-B software package needs to be purchased separately. Available spare parts are the AS-B connector kit (SXWASBCON10001) and AS-B installer kit (SXWASBINS10001).
