СКУ: RE22R2HMR
Dual relay 8A 2CO 0.05 300h interval 24V
-
Brand
Schneider Electric
-
Type of electric connection
EV000415
-
Suitable for front mounting
FALSE
-
Voltage type for actuating
EV000509
-
Height
90
-
Rated control supply voltage Us at AC 50HZ
12
-
Rated control supply voltage Us at AC 60HZ
12
-
Rated control supply voltage Us at DC
12
-
With semiconductor output
FALSE
-
Number of outputs, delayed, normally open contact
-
Number of outputs, delayed, normally closed contact
-
Pluggable on auxiliary contact block
FALSE
-
Clock function, starting with pause, variable
FALSE
-
Clock function, starting with pulse, variable
FALSE
-
Number of outputs, undelayed, change-over contact
1
-
Number of outputs, undelayed, normally open contact
-
Number of outputs, undelayed, normally closed contact
-
Function floating contact on de-energization
FALSE
-
Function pulse shaping
TRUE
-
Suitable for DIN rail (top hat rail) mounting
TRUE
-
Function floating contact on energization
FALSE
-
With plug-in socket
FALSE
-
Function star-delta
FALSE
-
Suitable as remote control
FALSE
-
Time range
0.1
-
Function delay-on energization
TRUE
-
Width
22.5
-
Function delay on de-energization
TRUE
-
Nominal current
8
-
Function flashing, starting with pause, fixed time
TRUE
-
Function flashing, starting with pulse, fixed time
TRUE
-
Remote operation possible
TRUE
-
Depth
79.5
-
Number of outputs, delayed, change-over contact
2
-
Outputs, reversible delayed/undelayed
TRUE

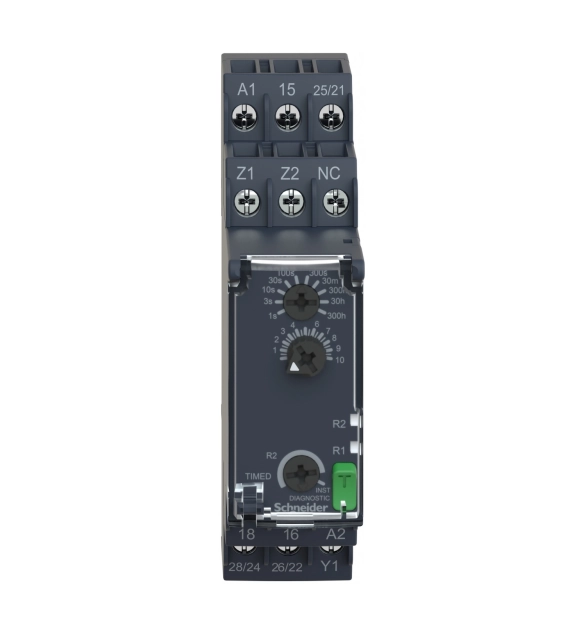

This Harmony RE22 modular multi function timer can be set between 0.1 seconds and 100 hours. It provides multi functions and it is mountable on DIN rail. This modular multi function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Selectable timing range offers a one stop solution for your power management system. multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC.
