СКУ: A9D34620

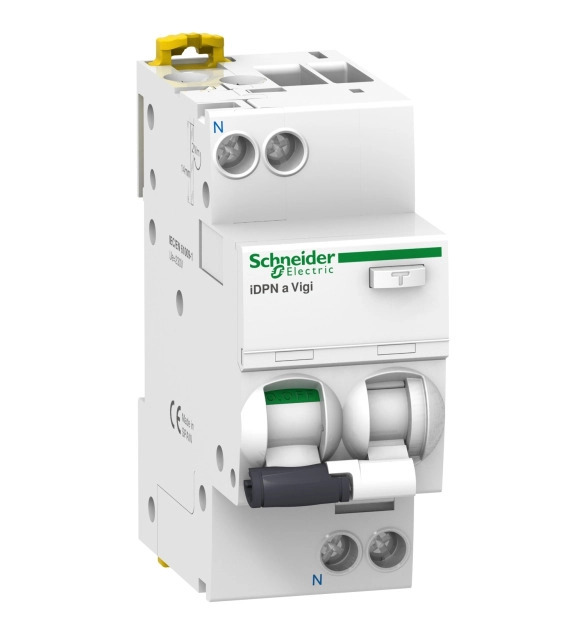

ДТЗ iDPNA VIGI 4,5KA 20A C 30MA A9D34620
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Width in number of modular spacings
2
-
Number of poles (total)
2
-
Release characteristic
EV000084
-
Concurrently switching neutral conductor
TRUE
-
Flush-mounted installation
FALSE
-
Connectable conductor cross section multi-wired
1
-
Pollution degree
3
-
Number of protected poles
1
-
Rated current
25
-
Rated voltage
230
-
With interlocking device
TRUE
-
Anti-nuisance tripping version
FALSE
-
Rated fault current
0.03
-
Surge current capacity
0.25
-
Built-in depth
44
-
Voltage type
EV000460
-
Connectable conductor cross section solid-core
1
-
Over voltage category
3
-
Frequency
EV008013
-
Ambient temperature during operating
-5
-
Rated impulse withstand voltage Uimp
4
-
Leakage current type
EV000460
-
Current limiting class
3
-
Rated insulation voltage Ui
400
-
Rated short-circuit breaking capacity Icn according to EN 61009-1
4.5
-
Disconnection characteristic
EV000154
-
Rated short-circuit breaking capacity according to EN 61009
4.5
This Acti9 Reflex iC60H is a low voltage integrated control circuit breaker. It combines integrated circuit breaker protection and load control for lighting control applications. It has 2P with 2 protected poles, rated current 10A and D tripping curve. Y1/Y2 inputs remote control voltage is 230VAC and 1A. They allow local and remote control of lighting. Y3 input remote control voltage is 24VDC and 5.5mA. Y3 allow easy connection to a Power Logic Controller or a Building Management System. Breaking capacity at 230VAC is 30kA according to IEC 60947-2 . Breaking capacity at 400VAC is 15kA according to IEC 60974-2. Electrical endurance goes up to 30000 cycles for AC-1 or AC-7a. Electrical endurance goes up to 6000 cycles for AC-5a or AC-5b and AC-7c. It is possible to associate a vigi block to have a differential protection.
