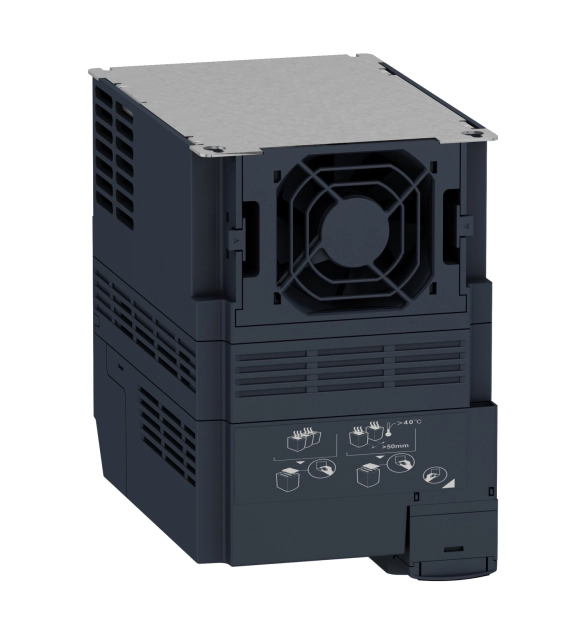

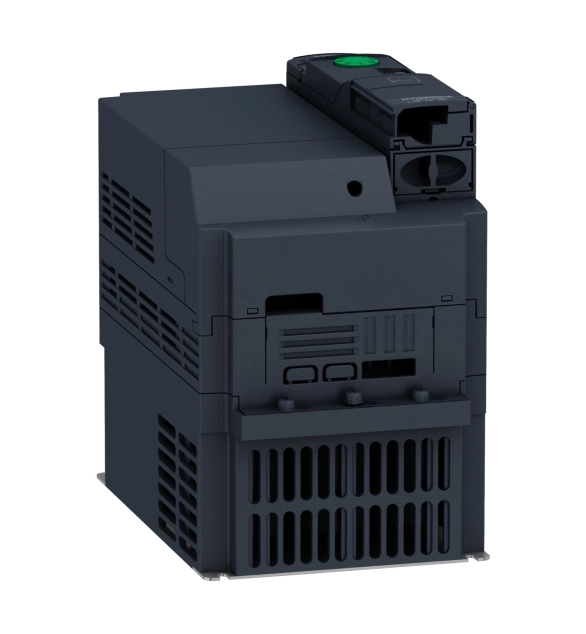

SCHNEIDER ELECTRIC Variable Speed Drive 7.5KW 3PH, HS code: 85044090, COO: IN, 5.6kg /PO:40401618/

• Brand
  Schneider Electric
• Supporting protocol for SERCOS
  FALSE
• Supporting protocol for INTERBUS-Safety
  FALSE
• Supporting protocol for AS-Interface Safety at Work
  FALSE
• Supporting protocol for DeviceNet Safety
  FALSE
• Supporting protocol for Foundation Fieldbus
  FALSE
• Supporting protocol for SafetyBUS p
  FALSE
• Supporting protocol for PROFINET CBA
  FALSE
• Supporting protocol for PROFIsafe
  FALSE
• Supporting protocol for ASI
  FALSE
• Supporting protocol for KNX
  FALSE
• Supporting protocol for INTERBUS
  FALSE
• Supporting protocol for Data-Highway
  FALSE
• Supporting protocol for LON
  FALSE
• Supporting protocol for other bus systems
  TRUE
• Supporting protocol for SUCONET
  FALSE
• With control element
  TRUE
• With optical interface
  FALSE
• Number of HW-interfaces parallel
• Number of interfaces PROFINET
• Number of HW-interfaces serial TTY
• Supporting protocol for EtherNet/IP
  TRUE
• Supporting protocol for TCP/IP
  TRUE
• Supporting protocol for Modbus
  TRUE
• Number of HW-interfaces other
  1
• Supporting protocol for CAN
  TRUE
• Number of HW-interfaces RS-422
• Number of HW-interfaces RS-485
  1
• Number of HW-interfaces industrial Ethernet
• Degree of protection (NEMA)
  EV014040
• Number of analogue outputs
  1
• Number of HW-interfaces USB
• Number of HW-interfaces RS-232
• Degree of protection (IP)
  EV006422
• Number of digital outputs
  3
• Depth
  300
• Supporting protocol for BACnet
  FALSE
• Width
  320
• Supporting protocol for PROFIBUS
  TRUE
• Supporting protocol for DeviceNet
  TRUE
• Type of converter
  EV009484
• Mains frequency
  EV008015
• Number of phases input
  EV000069
• Number of phases output
  EV000069
• Relative symmetric net voltage tolerance
  10
• Relative symmetric net frequency tolerance
  5
• Application in domestic- and commercial area permitted
  FALSE
• Application in industrial area permitted
  TRUE
• With PC connection
  TRUE
• Mains voltage
  380
• Supporting protocol for PROFINET IO
  TRUE
• Number of analogue inputs
  3
• 4-quadrant operation possible
  TRUE
• Max. output at quadratic load at rated output voltage
  7.5
• Max. output at linear load at rated output voltage
  7.5
• Max. output frequency
  599
• Integrated breaking resistance
  TRUE
• Nominal output current I2N
  17
• Max. output voltage
  500
• Number of digital inputs
  7
• Height
  521
