СКУ: 19071

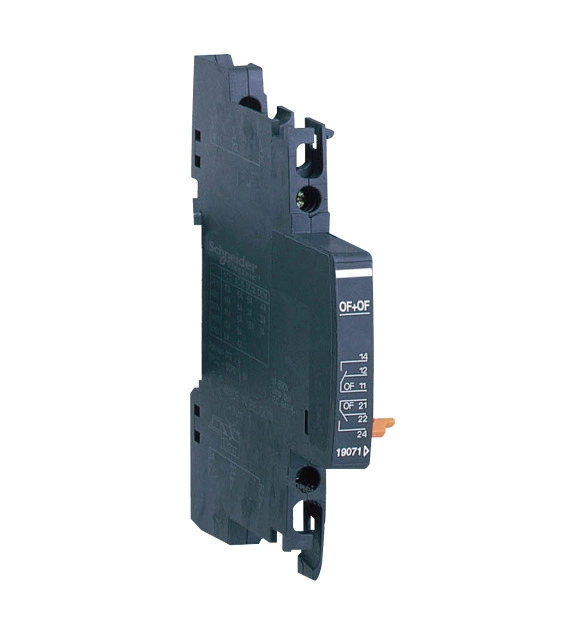

Доп. контакт OF плюс OF за NG125
-
Brand
Schneider Electric
-
Type of electric connection
EV000415
-
Model
EV003966
-
Mounting method
EV003965
-
Number of contacts as change-over contact
2
-
Number of contacts as normally open contact
-
Number of contacts as normally closed contact
-
Rated operation current Ie at AC-15, 230 V
240
-
Number of fault-signal switches
This Acti9 NG125 electrical auxiliary is a double open/close contact mounted on DIN rail. It is dedicated to Acti9 NG125, NG125NA and NG125LMA. It is used for remote indication of the position of the associated device. The 2 contacts changeover indicates "open" or "closed" position of the associated device. The width in 9mm pitches is 1. The operating frequency is between 50Hz and 60Hz. It also works on direct current. The In rated current is from 0.1A to 6A at 240VAC, 0.1A to 3A at 415VAC, 0.1A to 1A at 130VDC, and 0.1A to 3A at 48VDC. The Ue rated operational voltage is up to 415VAC and 130VDC. The dimensions are (W) 9mm x (H) 102.8mm x (D) 75.5mm. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 85°C. This product complies with IEC/EN 60947-5-1 standards.
